Integrated Dynamics Pride Mini Tactical Unmanned Aerial Vehicle System (UAVS):

The Integrated Dynamics is a well-known and credible State-owned Private Defense Company based in PAKISTAN that deals with designing, manufacturing and exporting of various types of Unmanned Aerial Vehicle Systems (UAVS) for Civilians and Military Purposes.

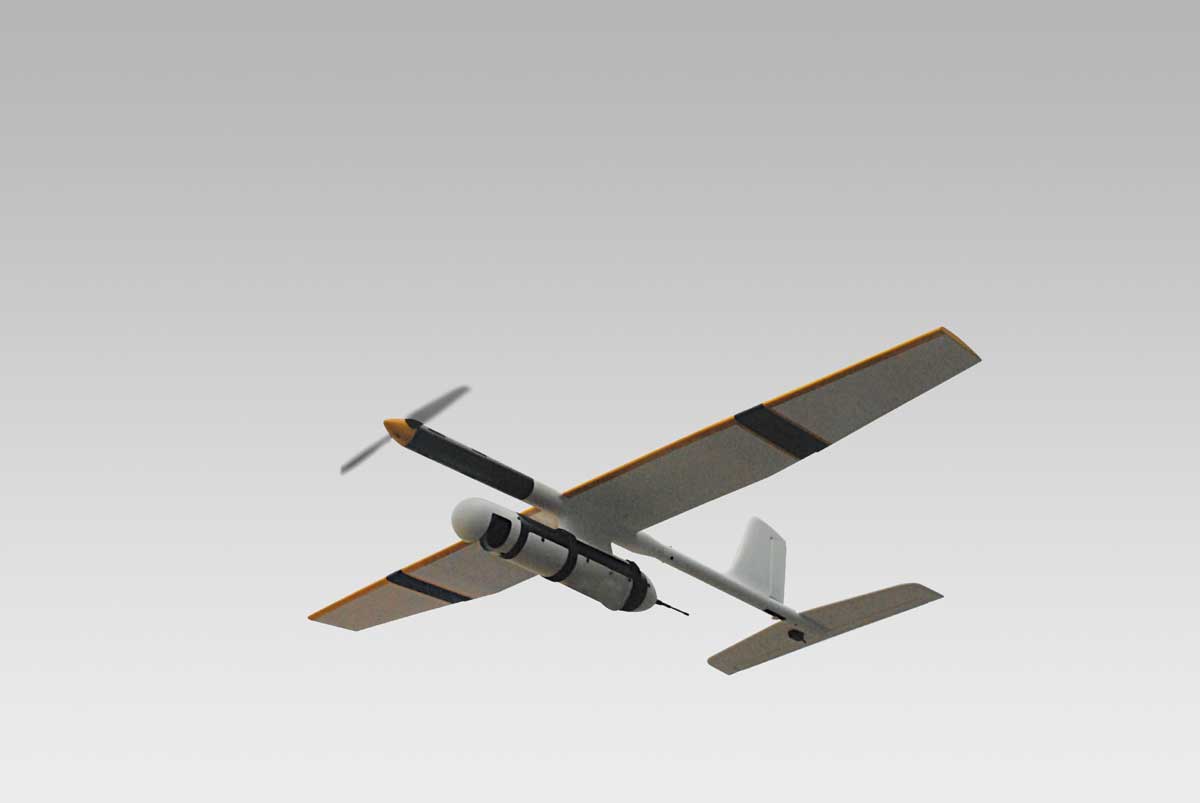

PRIDE UAVS PAKDEFENSE
PRIDE UAVS

The company also offers turn-key commissioning projects for different type of Unmanned Aerial Vehicle System (UAVS). The name of the new product offered by the company named as Integrated Dynamics Pride Mini Unmanned Aerial Vehicle System (UAVS).

The Integrated Dynamics Pride Mini Unmanned Aerial Vehicle System (UAVS) is basically a compact and a miniaturized version of the Integrated Dynamics Spirit Unmanned Aerial Vehicle System (UAVS).

The Integrated Dynamics Pride Mini Unmanned Aerial Vehicle System (UAVS) is basically designed for Perimeter Monitoring & Surveillance Systems.

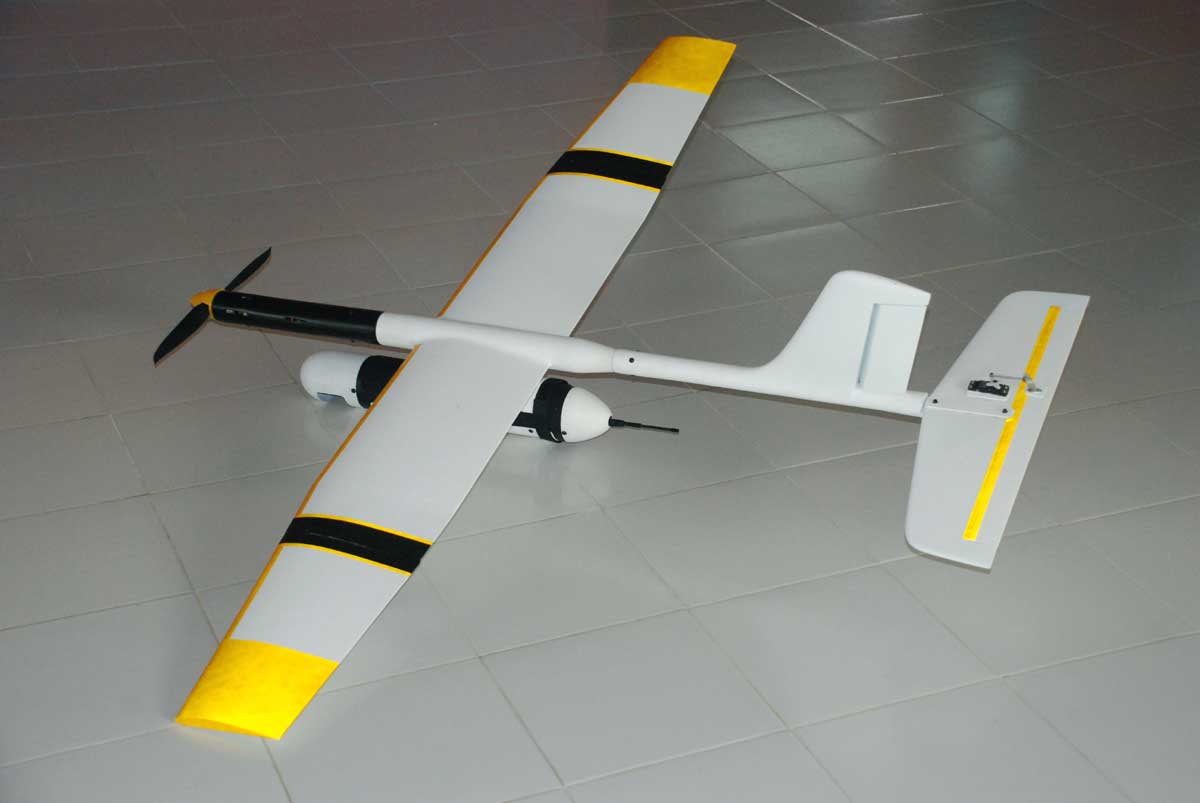

Integrated Dynamics Pride UAVS
Integrated Dynamics Pride UAVS
ALSO READ  PAKISTAN NAVY COMKAR Command Annual Efficiency Awards Ceremony 2020 Held At Karachi

The Integrated Dynamics Pride Mini Unmanned Aerial Vehicle System (UAVS) is designed to use for both civilians and Military purposes and it has a total operational range up to 10 Kilometers in total.

The Integrated Dynamics Pride Mini Unmanned Aerial Vehicle System (UAVS) can operate at an altitude of 2000 Feet (600 meters).

One of the best features of the Integrated Dynamics Pride Mini Unmanned Aerial Vehicle System (UAVS) is powered by the Noiseless Electric Propulsion Module that allow the UAVS to monitor for the discretely surveillance and perimeter monitoring of any designated area with ease.

The total weight of the Integrated Dynamics Pride Mini Unmanned Aerial Vehicle System (UAVS) is less than 5 kilograms in total, so it can easily be taken by infantry soldiers in a hybrid warfare environment and it can be made available and responsive on a short notice.

ALSO READ  Humiliations for Coward indian forces as Another Coward indian Pilot Burnt Alive As MiG-29K Crashed in goa

The Integrated Dynamics Pride Mini Unmanned Aerial Vehicle System (UAVS) also supports the auto piloting feature. The hand-launched and deep stall recovering feature makes the Integrated Dynamics Pride Mini Unmanned Aerial Vehicle System (UAVS) and ideal tactical UAVS to be used in the complex hybrid warfare environment.

PAKDEFENSE Pride UAVS

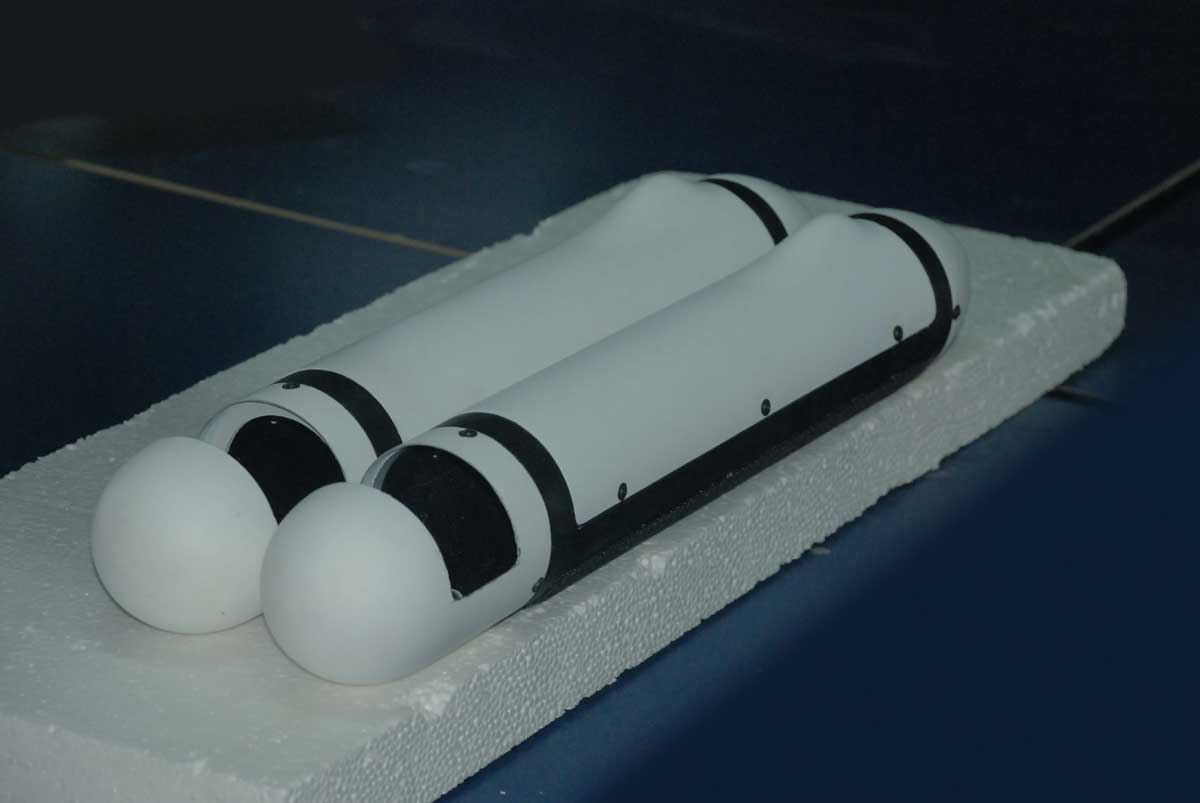

Pride Tactical UAVS Pods

As far as the tracking and surveillance features of the Integrated Dynamics Pride Mini Unmanned Aerial Vehicle System (UAVS) is concerned; the Pride UAVS is supplied with the telemetry downlink and PTZ Camera System and it can easily stay in the air for over an hour for surveillance or perimeter monitoring.

The complete system of Pride Unmanned Aerial Vehicle System (UAVS) consists of 4 numbers of Pride UAV’s, a Digital Spread Spectrum (DSS), a laptop PC Ground Control Station with real-time map moving display and programming, cables, antennas and operational spares.

ALSO READ  Massive Protests Erupts And Nepalese People Sat indian flags on Fire As india Trying To Illegally Annex Nepalese Territory Of Lipulekh Pass

Technical Specifications of the Integrated Dynamics Pride Mini Unmanned Aerial Vehicle System (UAVS):

  1. Role: Surveillance & Perimeter Monitoring
  2. Total Area of Wing: 0.46 sq. m (4. 14 sq. ft)
  3. Wingspan: 1.61 m (5 ft)
  4. Total Length of UAVS: 1.45 meters (4.5 ft)
  5. Total Height of UAVS: 0.26 meter (0.83 ft)
  6. Empty Weight: <2.5 Kilogram (5.5 lbs)
  7. Maximum Take-Off Weight: 4.5 Kilograms (9.9 lbs)
  8. Total Speed Range: 30-100 kmph (20-60 mph)
  9. Launch System of UAVS: Hand-Launch
  10. Recover System: Deep Stall/Belly Landing
  11. Stabilization: ID-AP 2000 C Digital Autopilot System
  12. Propulsion: BLDC Electric Brushless Motor
  13. Total Range (Autonomous/GPS): 10.15 Kilometers (6-10 miles)
  14. Total Payload Capacity: 0.5 Kilograms (1.1 lbs)
  15. Typical Payloads: Still Camera and Daylight/IR Camera Modules
  16. Total Endurance: 45-60 Minutes (Depends on Throttle Management and Battery Capacity)
  17. Tracking & Telemetry; GPS, Video and Data Telemetry Module with PC Laptop Ground Control Station
