Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS):

The Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS) is another top of the line UAVS developed by the Top-Notch Integrated Dynamics Company, which is best known for the designing, manufacturing and exporting different type of UAVS.

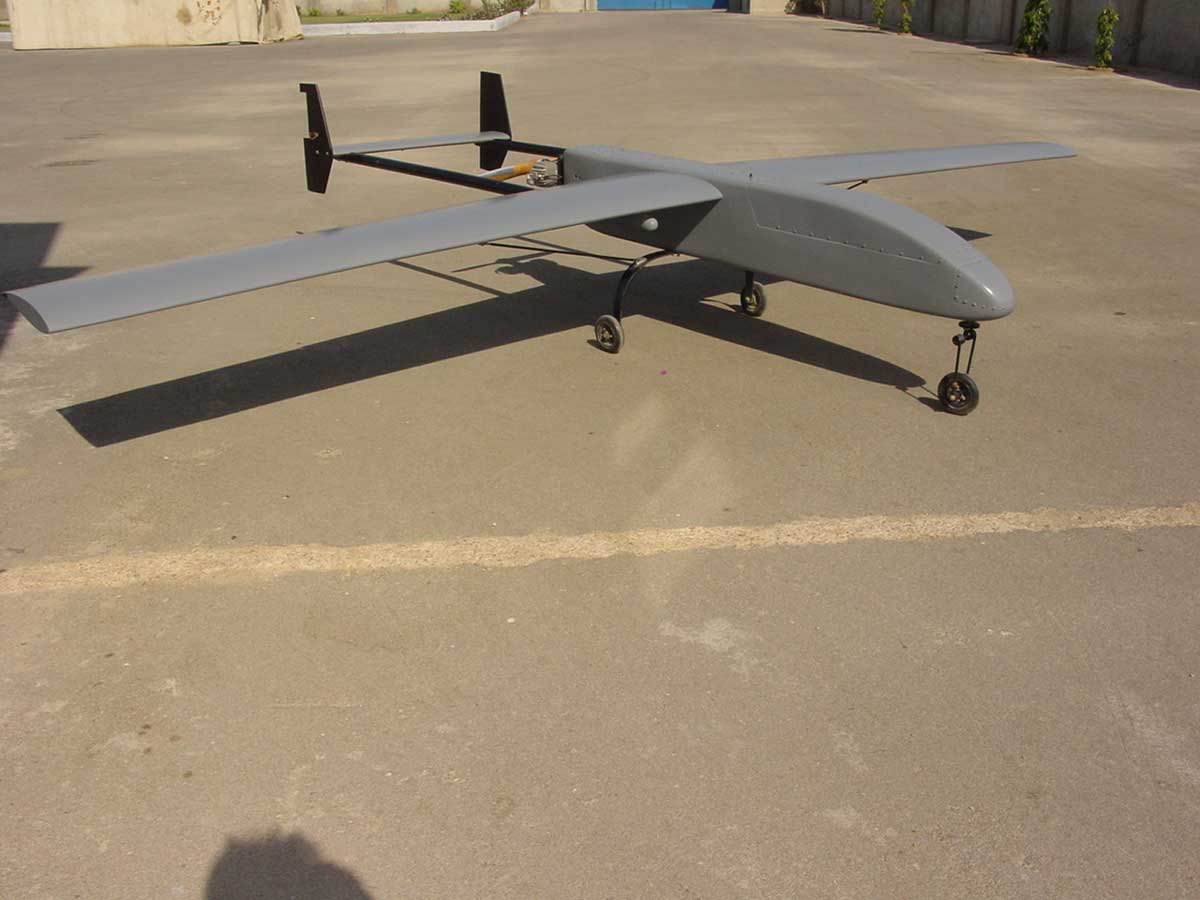

PAKDEFENSE Vector UAVS
Vector UAVS

The Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS) is basically a Tactical Mid-Range Surveillance Unmanned Aerial Vehicle System (UAVS).

The Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS) can easily provide the unmatched Tactical Surveillance capabilities of an area with a massive surveillance range of 160-200 Kilometers.

The Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS) offers ruggedness, modularity and accessibility that is unmatched than any other UAVS in field operations.

The Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS) is powered by the 22 British Horse Power (bhp) Twin-Cylinder Piston Engine. The Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS) can be used for a variety of tactical tasks in a complex hybrid environment and it can stay in the air for 8 hours continuously.

ALSO READ  Maiden Flight of PAKISTAN's Next Gen JF-17 Thunder Block 3 Expected By End Of Year 2019

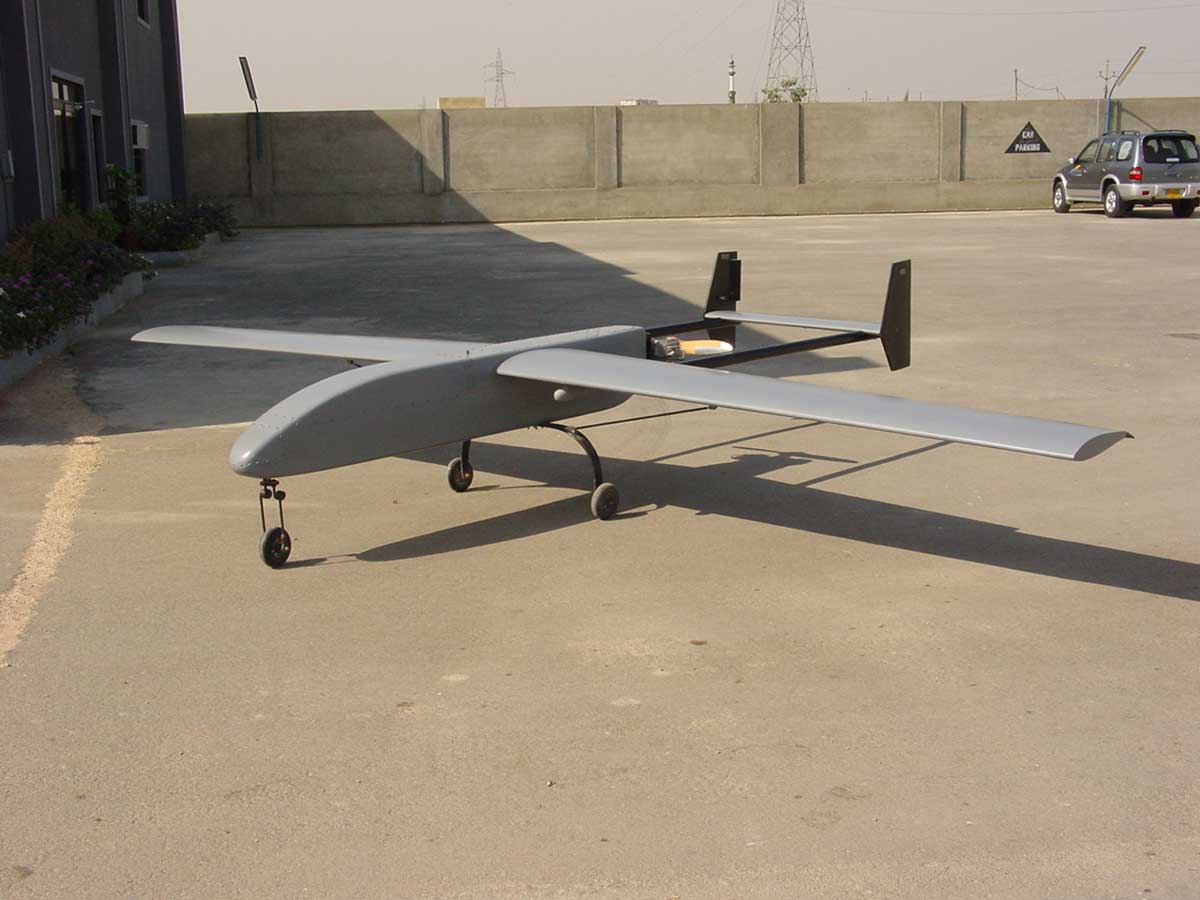

Vector UAVS PAKDEFENSE
Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS)

The Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS) can also be equipped with a variety of stock or modified power plants based on classical twin-boom pusher layout. The Vector UAVS can also be equipped with the stock or modified belt-driven and tuned-exhaust systems.

One of the distinctive features of the Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS) is that it houses the bullet-proof Kevlar molded fuselage, side stress panels, Kevlar/Graphite reinforcement equipment bays and steel aramid reinforced landing gears.

The Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS) can handle the maximum payload capacity up to massive 40 kilogram range, so it can easily support the variety of payloads with the available onboard power supplies.

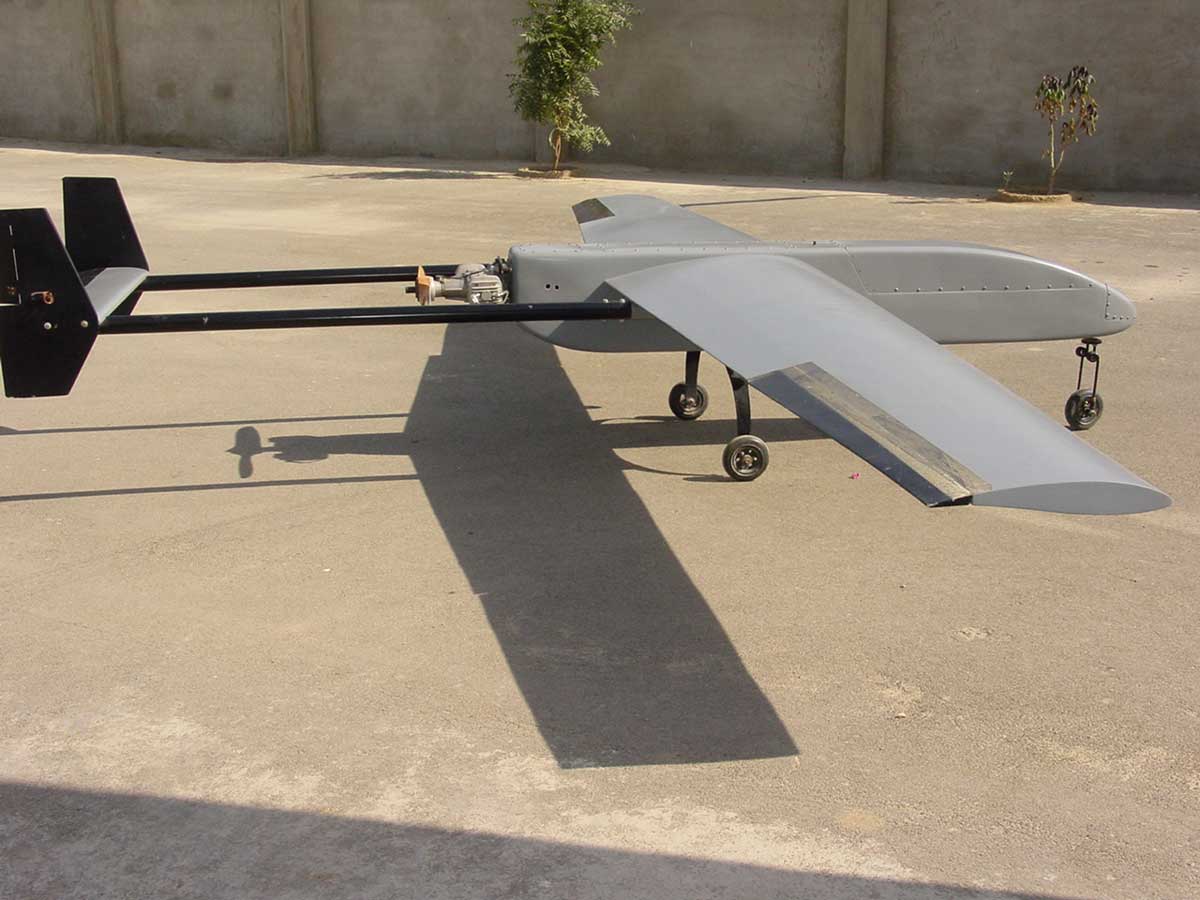

Vector UAVS
Vector UAVS

As far as the tracking and telemetry options of the UAVS is concerned; the Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS) features the latest flight avionics, and real-time data and video modules for an at least range up to 200 Kilometers in total.

The complete system of the Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS) consists of 4 numbers of Vector MK V UAVS, the ATPS-2000 Antenna Tracking & Positioning System, GCS-2000 Ground Control Station, GSE-2000 Ground Support Equipment Subsystem, Programming and real-time moving map display software, cables and additional spares.

ALSO READ  UK and indian Sponsored Terror Plan Foil As Security Forces Seized Large Weapon Cache in Karachi

Technical Specifications of the Integrated Dynamics Vector Unmanned Aerial Vehicle System (UAVS):

  1. Role: Tactical Surveillance Unmanned Aerial Vehicle System (UAVS)
  2. Total Area of Wings: 3.09 sq. m (30 Sq. ft)
  3. Wingspan: 6 meters (18 ft 6 Inches)
  4. Total Height of UAVS: 2.95 meters (9 ft 8 Inches)
  5. Total Length of UAVS: 0.89 meters (2 ft 7 Inches)
  6. Maximum Empty Weight: 55 Kilograms (121 lbs)
  7. Maximum Take-off Weight: 100 Kilograms (220 lbs) Max.
  8. Power Plant: 22 British Horse Power Twin-Cylinder Piston Engine
  9. GPS/Autonomous Range: 200 – 250 Kilometers (120 – 150 Miles)
  10. Total Endurance: 8 Hours
  11. Total Fuel Capacity: 35 Liters
  12. Total Speed Range: 75-208 kmph (120-150 miles)
  13. Recovery Method: Parachute or Wheels
  14. Total Payload Capacity: 25 Kilograms (55 lbs)
  15. Typical Payloads: EO/IR Cameras, GSP-900 Surveillance Real-Time Camera Module, Experimental Mission payloads. Different payloads can be mixed as per the mission requirements.
  16. Tracking & Telemetry: ID-TM6 GPS and Data Telemetry Module, ATPS-2000 Antenna Tracking System and GCS-2000 Ground Control Station
