Integrated Dynamics Vision MK-II Tactical Surveillance Unmanned Aerial Vehicle System (UAVS):

The integrated Dynamics is a well-reputed and credible company based in PAKISTAN. The company deals in the manufacturing of different types of Drones to cater the needs of Military and Civilian purposes in an efficient manner. The name of the new product offered by the company is named as Integrated Dynamics Vision MK-II Tactical Surveillance Unmanned Aerial Vehicle System (UAVS).

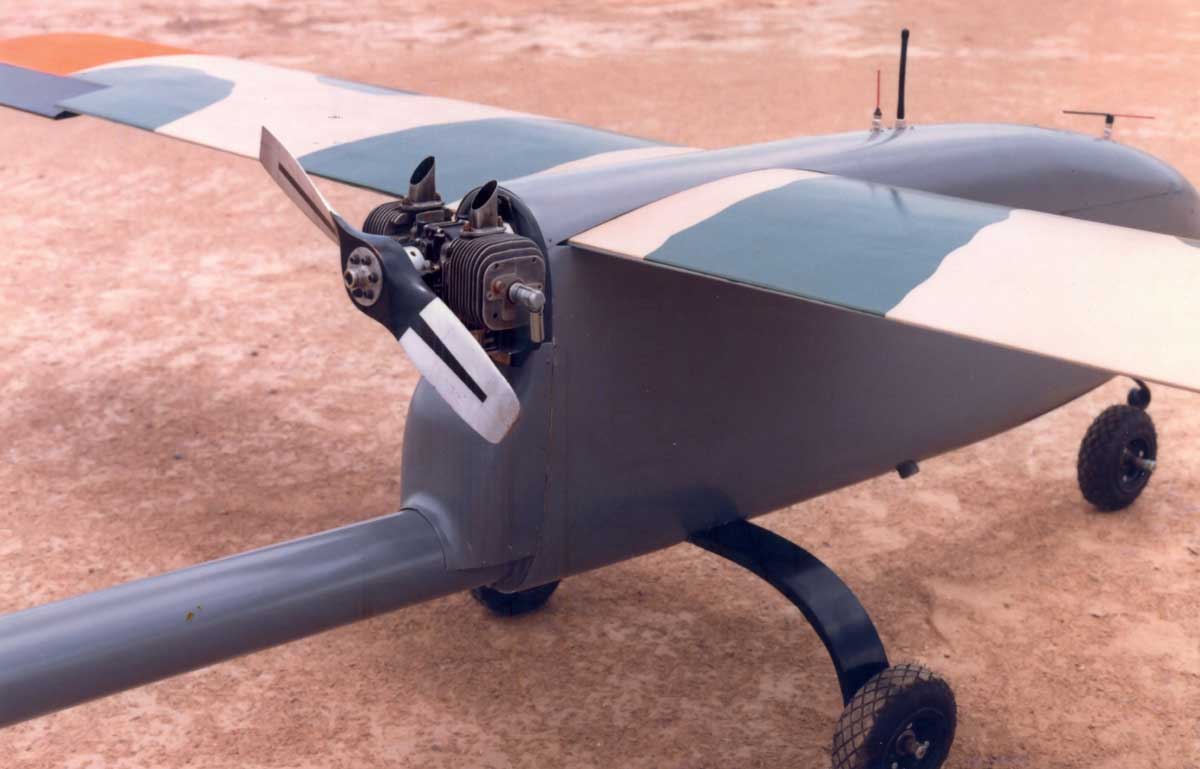

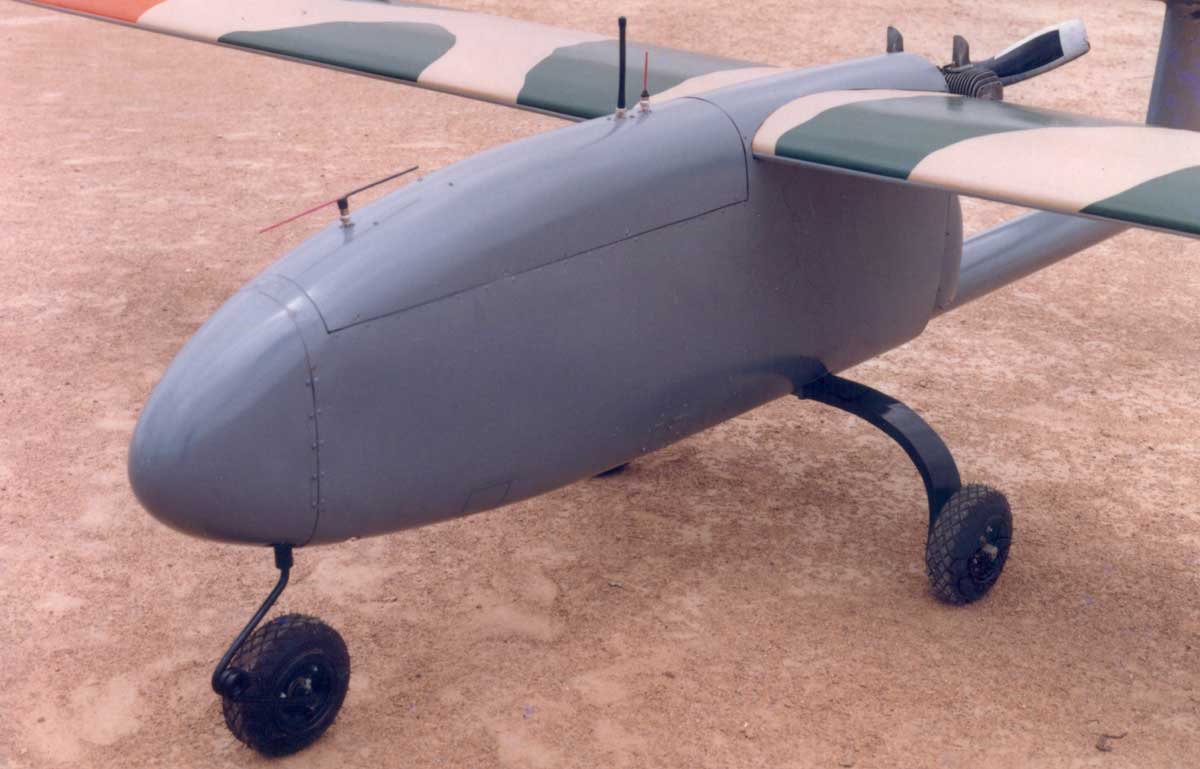

Integrated Dynamics Vision MK-II Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) PAKDEFENSE
Integrated Dynamics Vision MK-II Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) PAKDEFENSE

The Integrated Dynamics Vision MK-II Tactical Surveillance Unmanned Aerial Vehicle System (UAVS), as the name clearly suggests, is a Tactical Surveillance Unmanned Aerial Vehicle (UAVS).

The Integrated Dynamics Vision MK-II Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) features the larger airframe than the Vision MK-I UAVS and it is designed as stand-alone Unmanned Aerial Vehicle System element.

The Integrated Dynamics Vision MK-II Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) is a Tactical drone designed to use in complex hybrid warfare scenarios and it is capable to cover the range of massive 120 Kilometers in total.

The Integrated Dynamics Vision MK-II Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) features the single-boom layout and it is equipped with the high-wing configuration that can be used for the experimental testing of payloads.

ALSO READ  CAS Air Chief Marshal Zaheer Ahmad Babar Expresses Deep Condolences At The Sad Demise Of Former CNS Admiral Karamat Rahman Niazi
Integrated Dynamics Vision MK-II Tactical Surveillance Unmanned Aerial Vehicle System (UAVS)
Integrated Dynamics Vision MK-II Tactical Surveillance Unmanned Aerial Vehicle System (UAVS)

The user-friendly interface, navigation, reliability and durability are some of the characteristics of the UAVS that makes and ideal unmanned aerial vehicle to be used with all common tracking and ground control stations.

A complete system of Integrated Dynamics Vision MK-II Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) consists of 4 numbers of Unmanned Aerial Vehicle Systems (UAVS), the ATPS-1200 Antenna Tracking & Positioning System, Portable GCS-1200 Ground Control Station or Robust GCS-2000 Ground Control Station System, GSE-1200 Ground Support Equipment Subsystem, Special Software for Map Moving and Programming and additional Spares.

ALSO READ  I AM PAKISTAN

Technical Specifications of the Integrated Dynamics Vision MK-II Tactical Surveillance Unmanned Aerial Vehicle System (UAVS):

  1. Role: Tactical Unmanned Aerial Vehicle System (UAVS)
  2. Total Length: 2.9 meters (9 Ft 4 Inches)
  3. Total Height: 0.80 meters (2 Ft 6 Inches)
  4. Wingspan: 4.51 meters (14 Ft)
  5. Total Area of Wing: 3.04 Sq. meter (28 Sq. ft)
  6. Empty Weight: 55 Kilograms (121 Lbs)
  7. Maximum Take Off Weight: 90 Kilograms (200 Lbs)
  8. Power Plant: 22 British Horse Power Twin-Cylinder Engine
  9. Total Capacity of Fuel: 20 Liters
  10. Endurance: 4 – 6 Hours
  11. Total Speed Range: 75 – 208 kmph (47 – 130 mph)
  12. GPS/Autonomous Range: 100 Kilometers (62.5 miles)
  13. Total Payload Capacity: 15 Kilograms (33 lbs)
  14. Recovery: Wheels or Parachute
  15. Stabilization: IFCS-7000 Integrated Flight Control System
  16. Telemetry & Tracking Systems: ATPS-2000 Antenna Tracking & Positioning System, ID-TM6 Data and GPS Telemetry Modules, GCS-1200 Ground control station
  17. Typical Payloads: EO/IR Payloads, GSP-900 Surveillance real-time camera module. Different types of payload can be mixed, carried and used simultaneously
