TURKISH Defense Giant PROFEN Exhibits Manpack Satellite Terminals In 15th Edition Of IDEF 2021 in Istanbul:

TURKISH Defense Giant PROFEN Defense exhibited the Manpack Satellite Terminals in the 15th Edition of TURKEY’s International Defense Industry Fair 2021 being held at the TÜYAP Fair Convention and Congress Center in Istanbul.

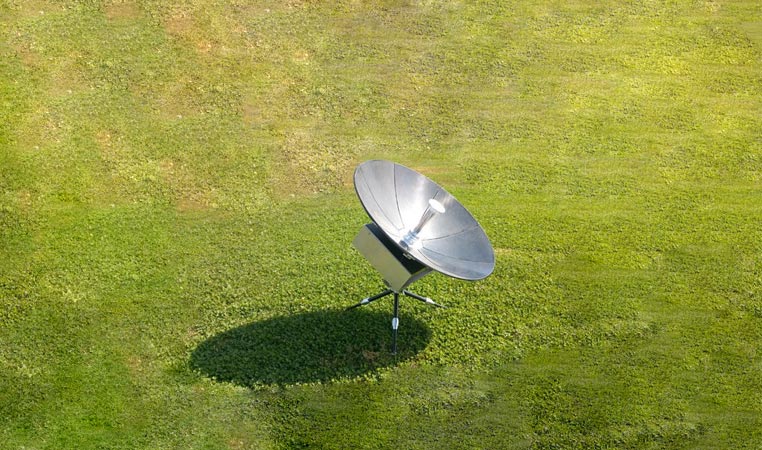

PROFEN Defense exhibits the compact weight of the Manpack Satellite Terminals with a total weight of 16 Kilograms in total (without case) and it facilitates one man operation.

The PROFEN Manpack Satellite Terminals offer a convenient, lightweight and portable Satellite Communication System that can easily be operated and integrated by the first responder or soldier at high and low altitudes rural areas in the unfavorable harsh environment.

Besides the exceptional Radio Frequency performance, the PROFEN Satellite Terminals offer several logistical and operational advantages over all its competitors.

The intelligent, compact and robust design of the Manpack Satellite Terminals features a one-man operation and setup.

For more convenience, the PROFEN Manpack Satellite System can easily be carried in the backpack of first responder or soldiers can it can be carried in the airline overhead compartment.

Furthermore, the Manpack Satellite Terminals also comes with the optional hard transit case that can be used to carry the portable satellite system in an airline baggage.

Typical Applications of PROFEN Manpack Satellite Terminals:

• Instant satellite communication from disaster area
• Homeland security mobile SatCom
• Corporate network extension via satellite

Technical Specifications of PROFEN Manpack Satellite Terminals:

RF Specifications of Profen Manpack Satellite Terminals:

1. RX Frequency Range (GHz): 7.25 – 7.75
2. TX Frequency Range (GHz) 7.90 – 8.40
3. Polarization: RCP / LCP
4. G/T @ Mid-band and 20⁰ EL: 12.5 dB/K
5. Cross-Pol Isolation (dB): >25 dB on Axis
6. Typical Terminal EIRP: 45.3 dBW (with 16W BUC)
7. Side Lobe Performance: MIL-STD-188-164A

Mechanical Specifications of PROFEN Manpack Satellite Terminals:

1. Total Size of Antenna: 65 cm
2. Reflector: 5 pcs Segmented Carbon Fiber
3. Type of Antenna: Parabolic with Splash plate Sub-reflector
4. Mount: EL over AZ tripod
5. Axis Travel (Azimuth): ±60⁰
6. Elevation: ±5⁰ – 90⁰
7. Weight: Total Weight of Terminal 16 Kilograms in total
8. Dimensions: 800 x 530 x 320 mm (W x D x H)
9. Casing & Packing Options: 2 x Soft Case

                                                1 x IATA Compliant Hard Case

Environmental Specifications of PROFEN Manpack Satellite Terminals:

1. Operational Temperature Range: -30 to + 60⁰ C
2. Survival Temperature Range: -40 to + 70⁰ C
3. Humidity: 95% Non-Condensing
4. Rainfall: 100mm/h Max.
5. Operational Wind Performance: 60 kph
6. Survival Wind Performance: 100 kph (Stowed)
7. Altitude: 4000m
8. External Battery: Battery Pack Option
9. Power: 85-265ACV, 45-65Hz, 24-48 DCV

Modem Interface of of PROFEN Manpack Satellite Terminals:

1. Data Interface and Console: RJ45 Ethernet
2. RF Interface for External Modem: L-Band In/Out (950-2150 MHz)
