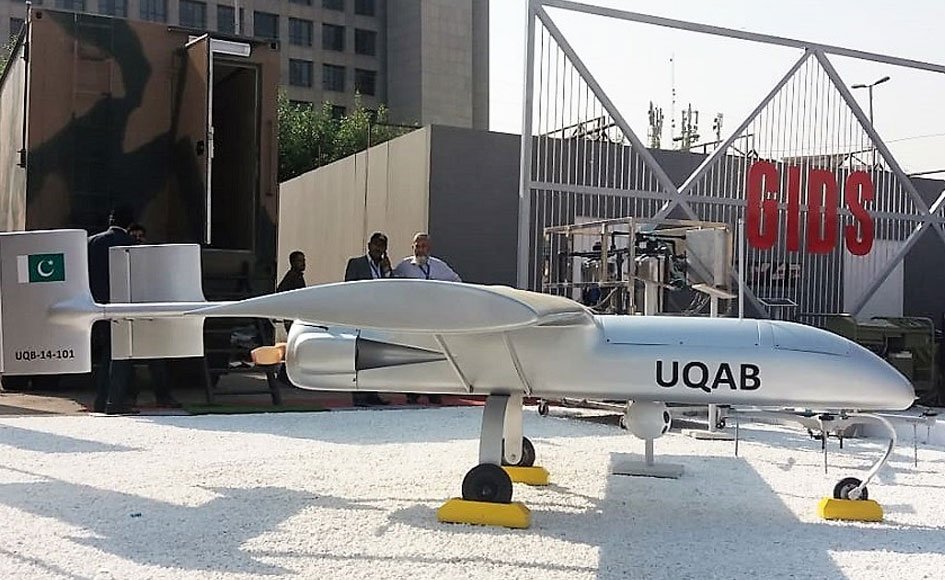

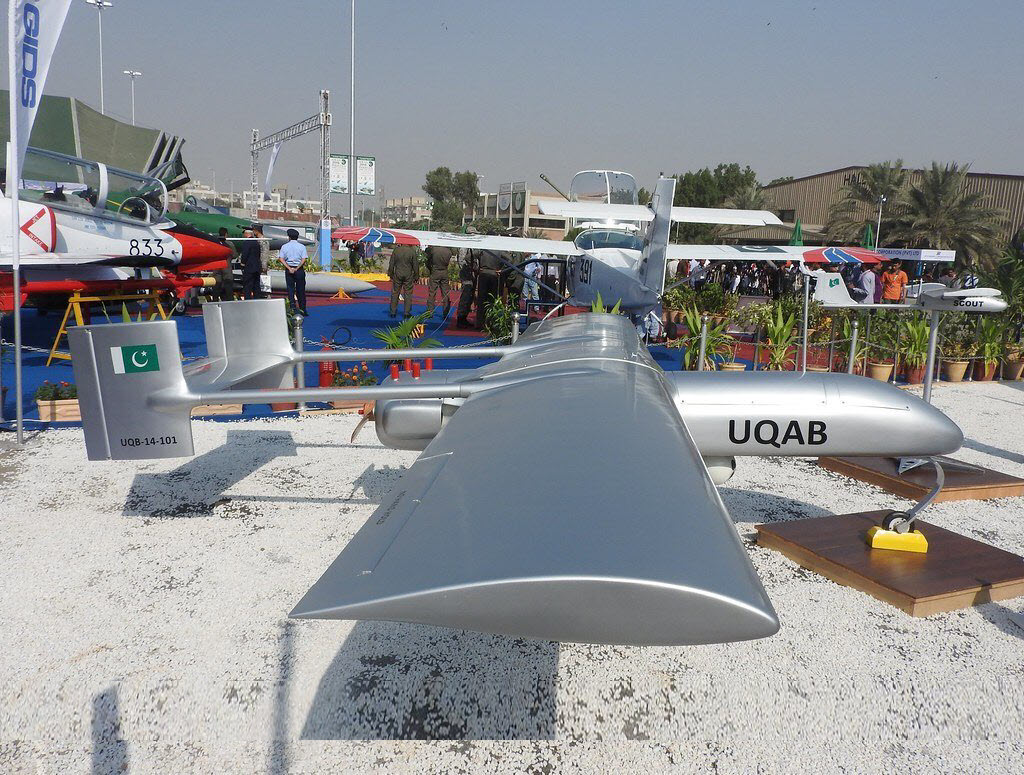

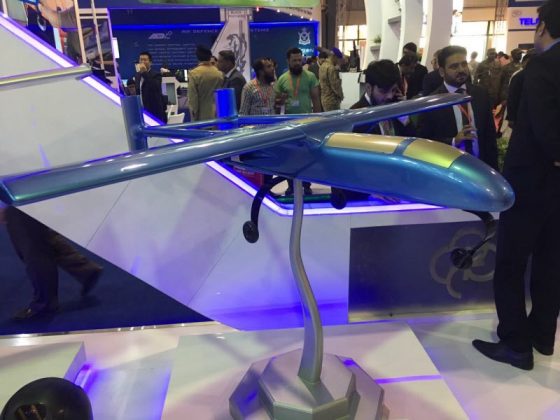

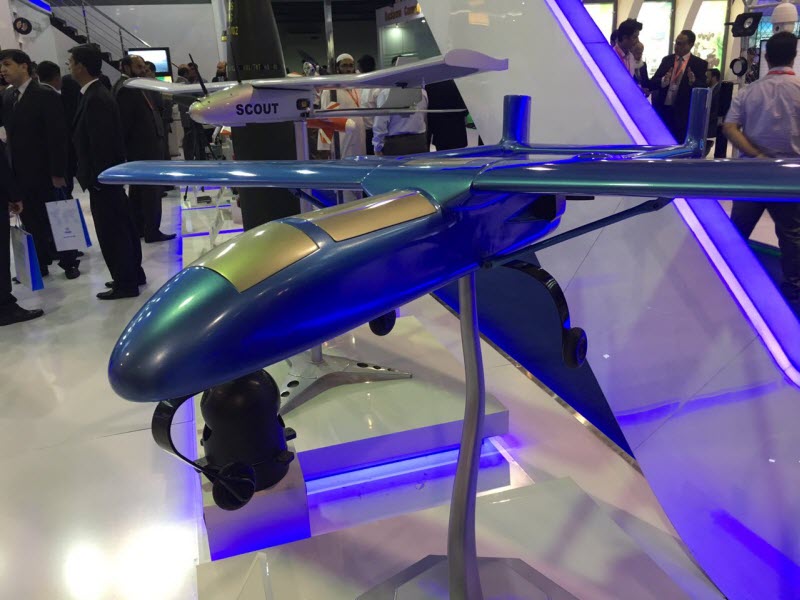

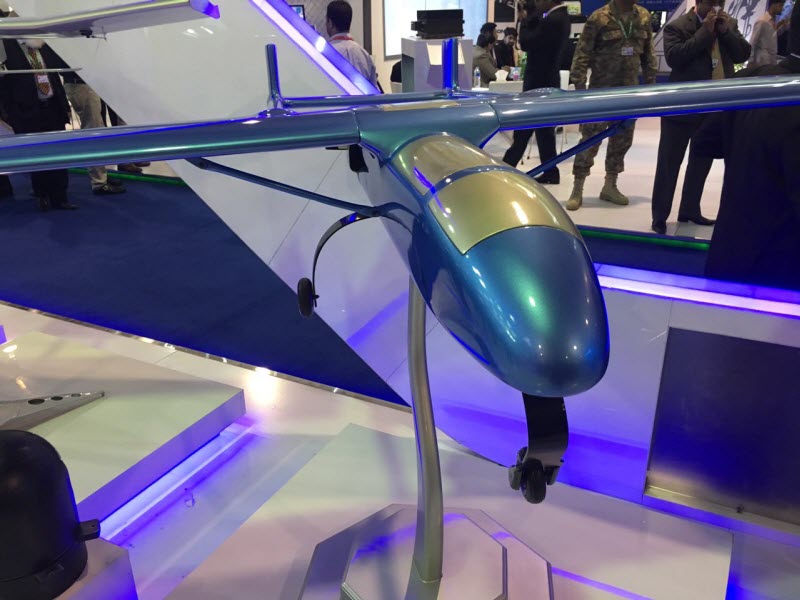

GIDS UQAB Tactical Unmanned Aerial Vehicle System:

The Global Industrial Defense Solutions or GIDS is a top notch and a hi-tech Defense company engaged in the manufacturing of state of the art and cutting-edge productions in the domains of Air, Land, Sear and Nuclear Biological Chemical Defense and Security. GIDS also developed the state of the art Unmanned Aerial Vehicle Systems for Combat and Reconnaissance. The name of the new product offered by the company named as the GIDS UQAB Tactical Unmanned Aerial Vehicle System.

The GIDS UQAB Tactical UAV has a total speed of 150 Kilometers per hour and it can stay in the air continuously for up to 6 hours in total. As far as the range is concerned; the UQAB Tactical UAV covers the range of 150 Kilometers in total.

The GIDS UQAB Tactical UAV is a Tactical Aerial Reconnaissance System used to gather actionable intelligence, battle damage assessment and aerial reconnaissance in the battlefield.

The GIDS UQAB Tactical Unmanned Aerial Vehicle System can also be used for the joint forces operations, coastal area surveillance, search and rescue missions, route monitoring, flood relief operations and mob control.

ALSO READ  Bilateral Annual Exercise SHAHEEN AL JAZEERA Between SOF Of PAKISTAN NAVY And Bahrain Navy Concludes At Karachi

The GIDS UQAB Tactical Unmanned Aerial Vehicle System features the Autopilot, Re-programmable during the flight Fail-safe mode.

It can carry multiple payloads during the mission, including the thermal imager with target tracking and locking capabilities and the Gyro-stabilized gimbal with color day camera.

For Tracking and Navigation purposes, the GIDS UQAB Tactical Unmanned Aerial Vehicle System uses the Global Positioning System and Real-time digital video position and health of UAV GEO-referencing system.

The GIDS UQAB Tactical Unmanned Aerial Vehicle System uses the 250kN powerplant and it uses the Wheeled launch and recovery system.

ALSO READ  6th Generation Warfare: Evolution Of Warfare From Classic To Hybrid Domains

Ground Control Station (GCS) of GIDS UQAB Tactical UAVS:

The Ground Control Station of GIDS UQAB Tactical UAVS consists of Ground Control Station, which is a truck-mounted insulated and air conditioned container, which is packed with the several standard and ruggedized consoles.

Characteristics of GIDS UQAB Tactical UAVS:

  • User friendly mission planning and execution
  • In-flight mission re-programming
  • Simulation and Mission De-briefing
  • Geo-referencing
  • Moving map software
  • Real time video and telemetry data
  • Flexible waypoints entry & editing during the flight
  • Mission parameter & flight data logger for post flight analysis & simulation
  • Separate consoles for UAV Pilot, Mission Commander and payload operator
  • Standby control links (redundancy)
  • Easy to read display and gauges
  • Easy payload (camera) controls
  • Back-up power supply

Technical Specifications of GIDS UQAB Tactical Unmanned Aerial Vehicle System:

  1. Total Wing Span: 5.5 meters
  2. Total Height: 4.0 meters
  3. Total Length of UQAB Tactical UAVS: 1.2 meters
  4. Total Range of GIDS UQAB Tactical UAVS: 150 Kilometers in total
  5. Height Ceiling: 3,000 meters
  6. Endurance: 6 Hours
  7. Maximum Speed: 120 – 150 km/hr.
  8. Launch/Recovery: Wheeled system
  9. Powerplant: 250kN
ALSO READ  TURKISH Defense Minister H.E Mr. Hulusi Akar Visits QUAID-E-AZAM Mausoleum And Paid Rich And Glorious Tribute To The Founder Of The Sacred Country PAKISTAN



Performance Characteristics of GIDS UQAB Tactical UAVS:

  1. Flight Mode: Autopilot/RPV 1000 way points, Loiter mode, Fail-Safe mode, Re-programmable during flight and User defined holding patterns
  2. Tracking / Navigation System: Global Positioning System (GPS)
  3. Telemetry Data: Real-time Digital Video Position and Health of UAV Geo-referencing
  4. Payload Weight and Type: Gyro-stabilized gimbal with color day camera, thermal imager with target tracking and locking capabilities
