Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS):

The Integrated Dynamics is a well-credited and well-reputed Company based in PAKISTAN engaged in the manufacturing of the state of the art Unmanned Aerial Vehicle System (UAVS). The name of the new product offered by the company is Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS).

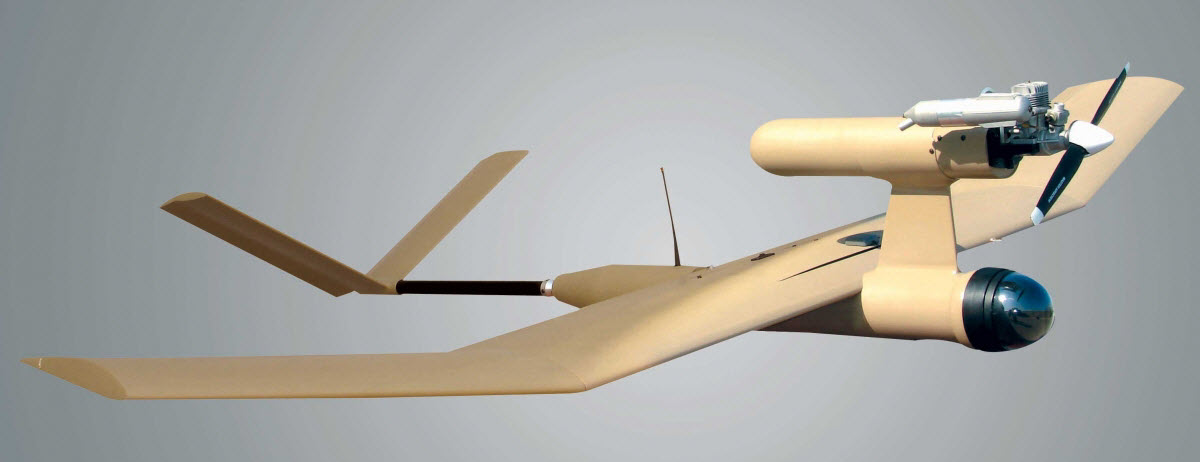

Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS) PAKDEFENSE
Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS)

The Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS) is basically a hand-launched Tactical Military Unmanned Aerial Vehicle System (UAVS).

The Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS) can easily gather the real-time and movement intelligence of the adversary in an active battlefield.

The Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS) has an operational range up to 15 Kilometers in total and it can easily and quickly be deployed at conventional unconventional and hybrid warfare environment with ease.

The Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS) is powered by the Integrated Circuit (IC) Engine Propulsion Module, which makes it almost impossible for adversaries to track it during flight.

ALSO READ  india Enjoys Aircraft Crash Party As Another iaf Mirage 2000 Crashed Due To Routine 'Technical Glitch'

The Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS) has a total endurance up to 60 minutes, but it mainly dependent on the throttle management and overall battery capacity of the UAVS.

The Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS) can easily fly at an altitude of over 3,000 feet or 1,000 meters in total.

The Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS) features the compact Autopiloting System that removes the hassle of calibration and complex programming.

The Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS) is a robust UAVS and it comes with the dedicated Telemetry Downlink and PTZ Camera System.

One of the best and distinctive features of the Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS) is that its total weight is less than 5 Kilograms in total. It means, that this tactical drone can easily be handled by the Army personnel with ease.

The Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS) is a hand-Launched Drone and it can easily be recovered by the belly landing that makes it the perfect drone to use quickly on short notice.

The simple handling, programming and ease of operation significantly reduce the operator training time and it also improves the aircraft survivability.

ALSO READ  PAKISTANI Security Agencies Have Arrested Another RAW and NDS Agent From Torkham Border

The complete system of Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS) consists of 4 numbers UAV’s Ground Control Stations, Telecommand Link, Antenna, Cables, Operational Spares, Software for Programming and display the moving map in a Laptop or Desktop PC and a DSS (Digital Spread Spectrum).

Technical Specifications of the Integrated Dynamics Desert Hawk Tactical Unmanned Aerial Vehicle System (UAVS):

  1. Role: Perimeter Monitoring Surveillance
  2. Total Height: 0.2 meter (0.6 Ft)
  3. Total Length: 0.9 meter (2.7 Ft)
  4. Wing Span: 1.5 meter (4.65 Ft)
  5. Total Area of Wing: 0.36 Sq. m (3.48 Sq. Ft)
  6. Maximum Take-off Weight: 4.5 Kilogram (10 lbs.)
  7. Dry Weight: <2.5 Kilogram (5.5 lbs.)
  8. Speed Range: 30 – 100 kmph (20 – 60 mph)
  9. Propulsion: Integrated Circuit Engine (IC Engine)
  10. Launch Mechanism: Hand Launch
  11. Recovery: Deep Stall/Belly Landing
  12. Total Communication Range (GPS/Autonomous): 10 – 15 Kilometers (6 – 10 Miles)
  13. Total Endurance: 60 Minutes Consecutively (Dependent of Fuel and Throttle Management)
  14. Total Payload Capacity: 0.5 Kilograms (1.7 lbs.)
  15. Stabilization: ID-AP 2000 C Digital Autopilot
  16. Typical Payloads: Infrared/Daylight Camera/Still Camera Module
  17. Tracking & Telemetry: Data, Video and GPS Telemetry module with PC or Laptop Ground Control Station (GCS)
