Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System (UAVS):

The Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System is another top of the line Unmanned Aerial Vehicle System designed by the Integrated Dynamics Company of PAKISTAN. The Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle is basically a top of the line Tactical Military Unmanned Aerial Vehicle designed for on field quick and reliable information at a tactical level.

Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System in PAKISTAN
Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System (UAVS)

The Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System has a total operational range up to 15 Kilometers, so it can easily be deployed in conventional and hybrid warfare scenarios to record each movement of your adversary in the battlefield.

One of the distinctive features of the Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle is that it is equipped with the noiseless electric propulsion module that can easily and discretely fly at an altitude of over 1000 meters of 3000 feet. Furthermore, the noiseless electric propulsion module also makes it extremely difficult to track in real-time scenarios.

ALSO READ  200 Million Proud PAKISTANI Nation Welcomed TURKISH President Recep Tayyip Erdoğan To Brotherly Country PAKISTAN

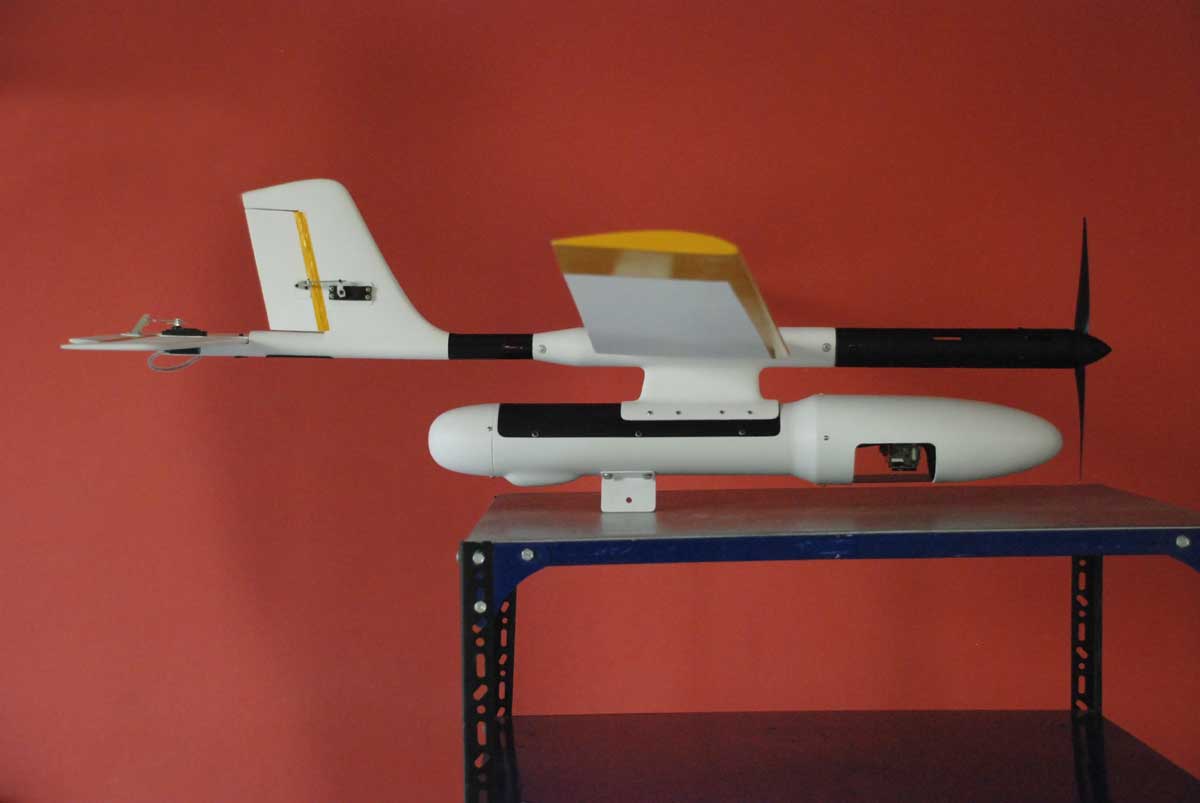

Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System

The Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System is a hand launched Unmanned Aerial Vehicle System (UAVS) and it can easily be recovered by the deep stall landing. This very feature makes the Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle is an ideal Tactical Drone that can be available on short notice.

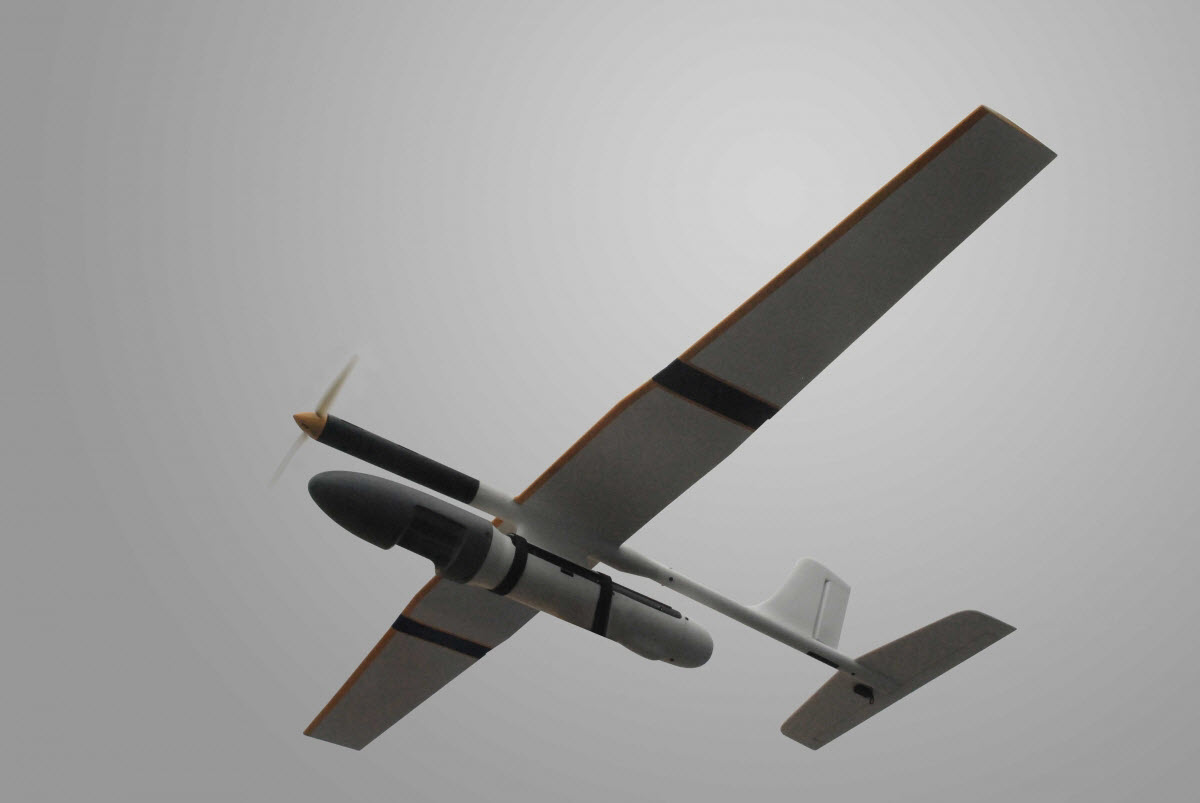

PAKDEFENSE Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System

The Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System is also very easy to handle and the simple design of the Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System (UAVS) significantly improves the aircraft survivability and it also reduces the training of the operator to fly, control and operate the Spirit UAVS.

Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System in PAKISTAN

The complete system of Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System consists of a DSS (Digital Spread System), Tele Command Link, Software for programming and display of moving map on PC or Laptop, antenna, cables and operational spares. It also consists of 4 numbers of UAV’s Ground Control Station (GCS).

ALSO READ  PAK ARMY Promoted Four Major Generals to Lt General Rank

Technical Specification of Integrated Dynamics Spirit Tactical Unmanned Aerial Vehicle System (UAVS):

  1. Role: Perimeter & Surveillance monitoring
  2. Length: 1.61 meter (5 Ft)
  3. Height: 0.26 meter (0.83 Ft)
  4. Wing Area: 0.75 Sq. m (6.66 Sq. Ft)
  5. Maximum Take-off Weight: 5 Kilograms (11 lbs)
  6. Dry Weight <3 Kilograms (6.6 Lbs)
  7. Speed Range: 30 – 100 kmph (20 – 60 mph)
  8. Launch Mechanism: Hand Launch
  9. Recovery: Deep Stall/Belly Landing

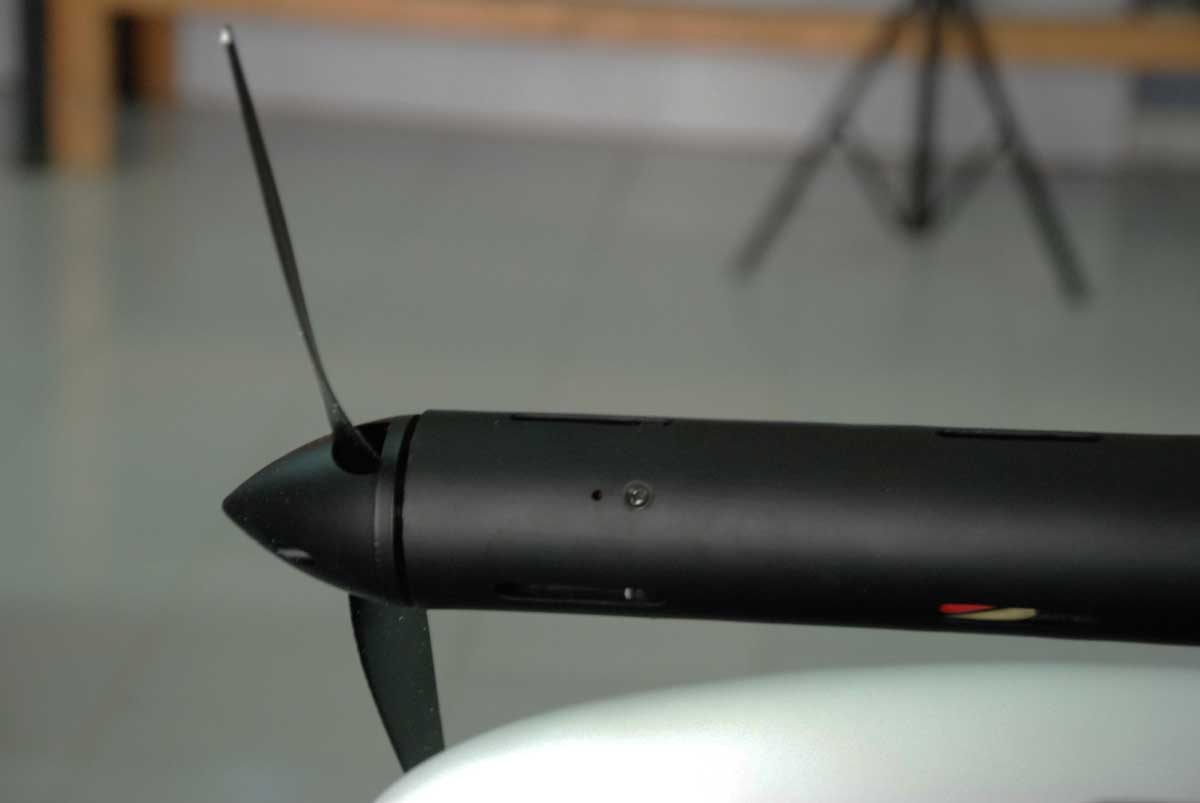

  10. Propulsion: BLDC Electric Motor
  11. Total Endurance: 60-90 Minutes (Dependent on throttle management and capacity of battery)
  12. Total Range (GPS/Autonomous): 10 – 15 Kilometers (9 – 10 Miles)
  13. Payload Capacity: 0.7 Kilograms (1.54 lbs)
  14. Stabilization: ID-AP 2000 C Digital Autopilot

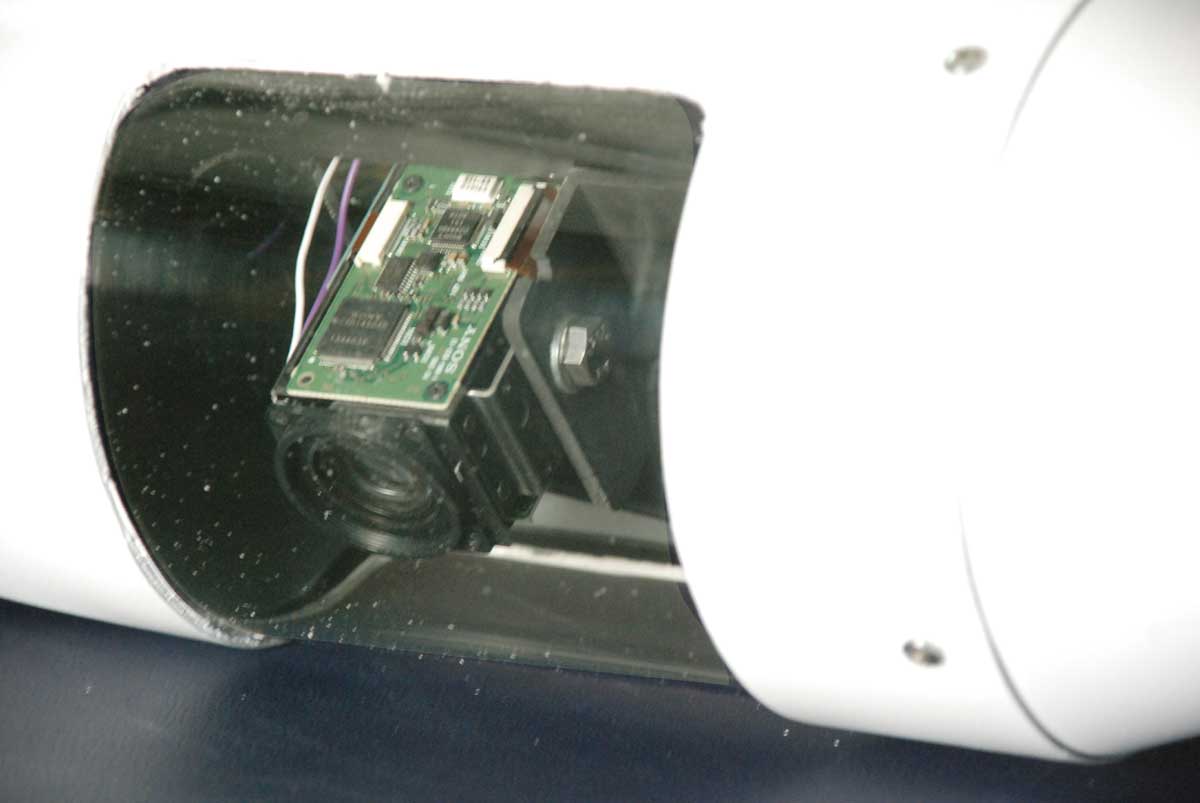

  15. Typical Payloads: Still Camera Module, Daylight/Infrared Camera Module
