Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS):

The Integrated Dynamics is PAKISTAN-based Company deals with the manufacturing of the huge range of Unmanned Aerial Vehicle System (UAVS) for both Military and Civilian purposes. The new product offered by the company famed as the Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS).

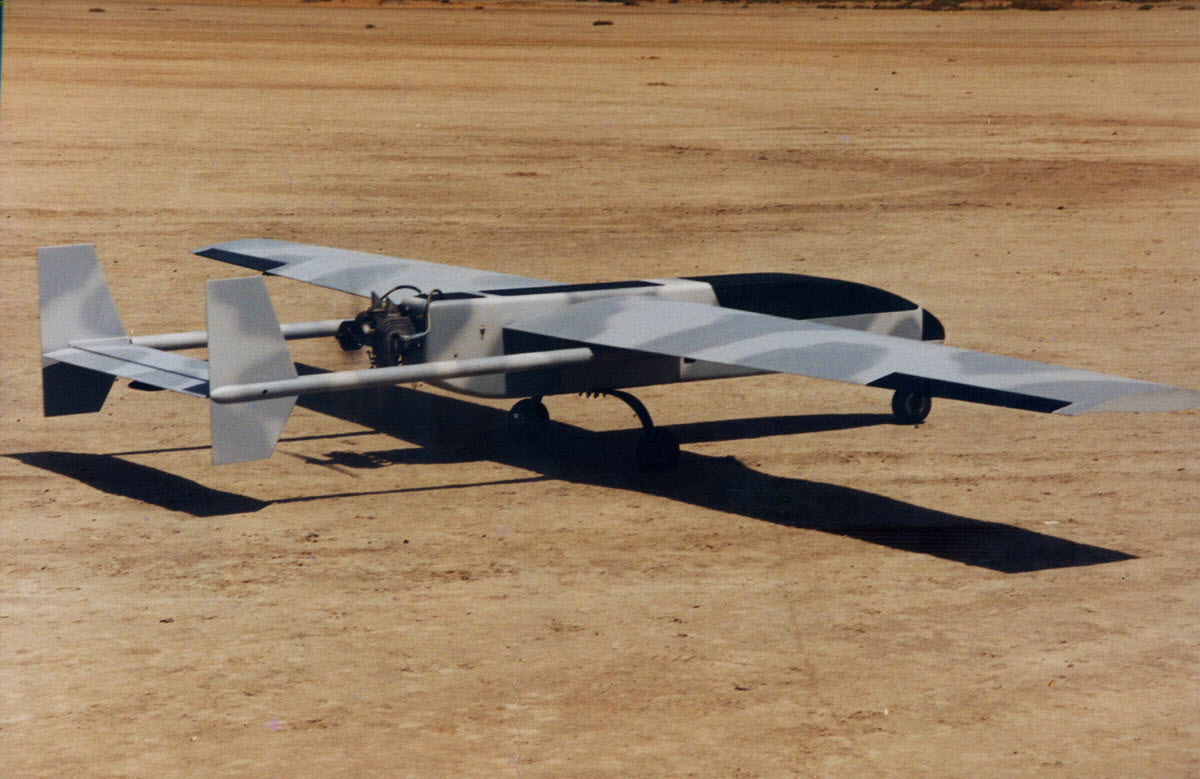

Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS)

The Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS), as the name clearly indicates, is an advanced and heavy-duty designed to cater the demands of low-medium sized UAV Market. The Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS) is one of the best built by the company in terms of pricing, capacity and capability.

The Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS)offers complete modularity, accessibility and ruggedness at the highest possible level and this UAVS is basically second to none in tactical and complex hybrid field scenarios.

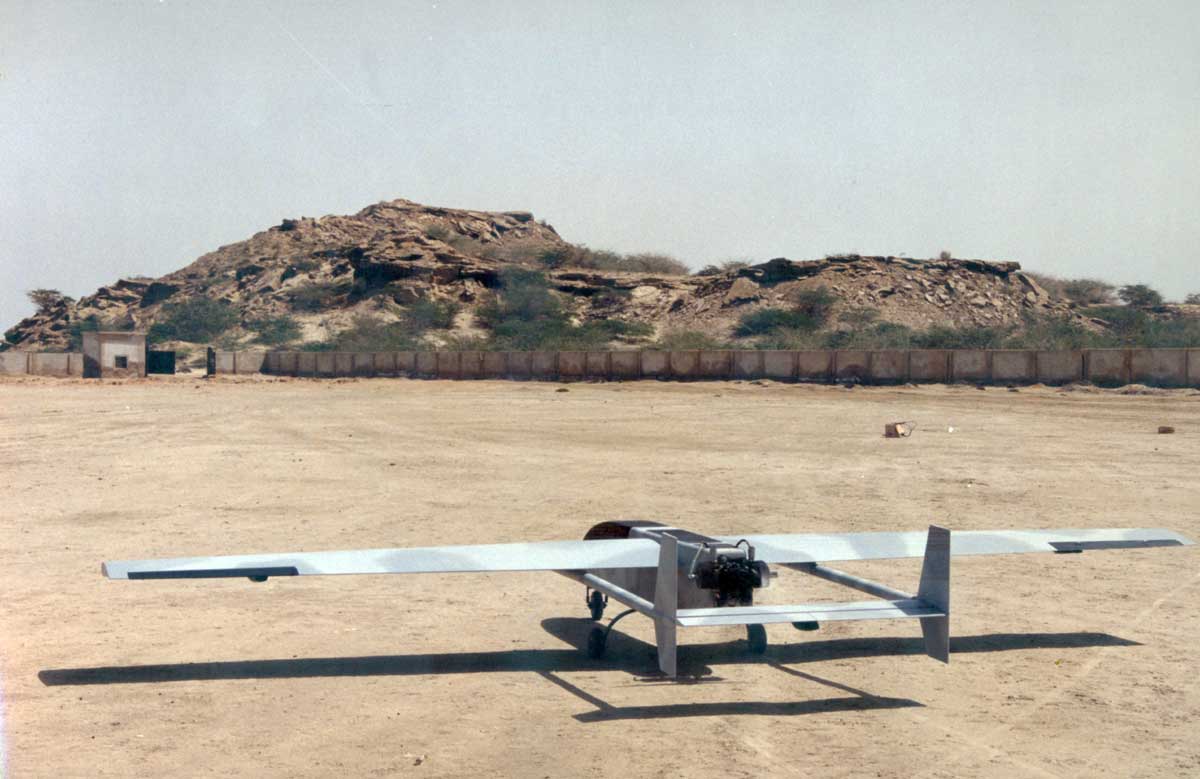

PAKISTAN Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS)

One of the distinctive features of the Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS) is that it features the maximum operation range up to massive 40 Kilograms in total. It means that all the users can easily install the different light-heavy payload on the Shadow UAVS with the above mentioned capacity with ease.

ALSO READ  Separatist Movements Of Mizoram Area In Fragile indian Union

The ruggedized and military use qualified Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS) is equipped with the Kevlar Bullet-Proof fuselage Pans for added durability. The reinforcement of Kevlar in fuselage helps to protect the UAVS from being hit or damage by enemy fire. Furthermore, the side stress panels and equipment bays are also made Bullet-Proof by the reinforcement of the Kevlar/Graphite. The landing gear of the Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS) is also made by the reinforcement of the high-tensile steel for durability purposes.

The Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS) can easily handle the variety of light and bulky payloads with the available onboard power supplies.

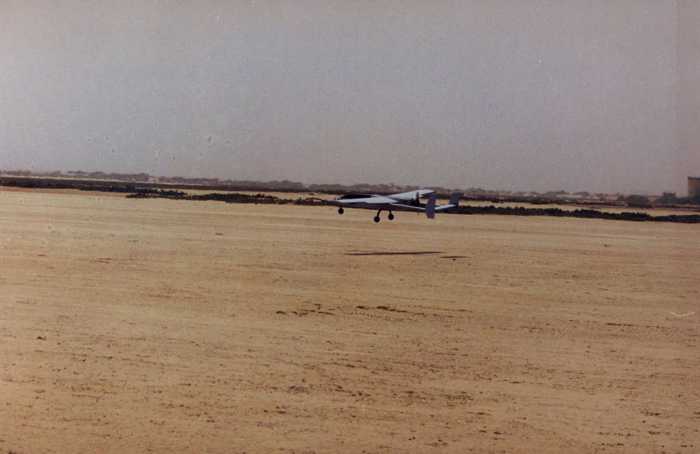

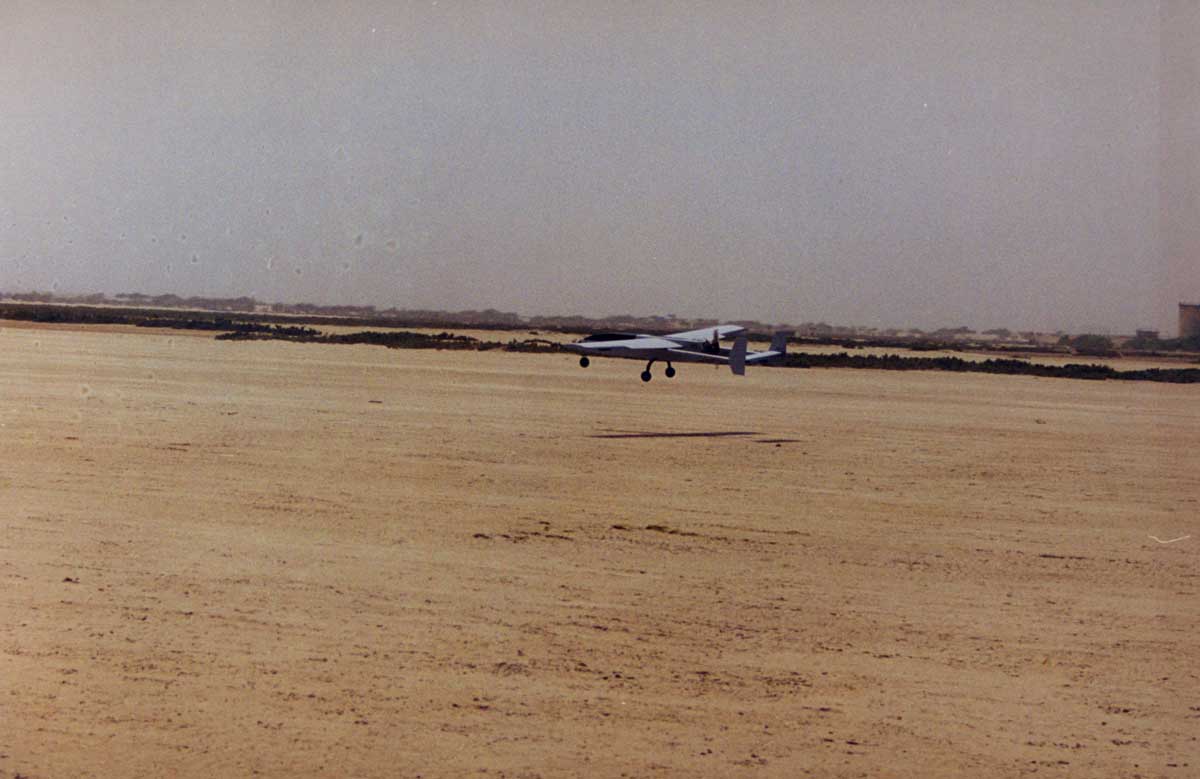

Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS) in PAKISTAN

The Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS)has a total Operational Range up to massive 160 – 200 Kilometers.It means that not only Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS) gathers the tactical and reliable information from hybrid warfare environment, but it can also track the movements of all enemy vehicles and military hardware from a considerable distance.

ALSO READ  Oman SAF’s Lt Gen Ahmed calls on COAS General Bajwa at GHQ

The Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS) can easily be equipped with the variety of modified or stock power plants based on a classical version of Twin-Boom pusher layout. The Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS) can also optionally be equipped with the custom belt-driven and tuned-exhaust modifications.

One of the distinctive features of the Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS) is that it supports the transmission of real-time video feed and flight avionics for at least 200 Kilometer LOS range applications.

The complete system of Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS) consists of 4 numbers of GCS-2000 Ground Control Station, GSE-2000 Ground Support Equipment Subsystem (GSES), the ATPS-2000 Antenna Tracking & Positioning System, software for programming and moving map display on Laptop or PC, cables and optional spares.

Technical Specifications of the Integrated Dynamics Shadow MK-I Surveillance Unmanned Aerial Vehicle System (UAVS):

  1. Role: Tactical Surveillance Unmanned Aerial Vehicle (UAVS)
  2. Total Length of UAV: 2.95 meter (9 Ft 8 Inches)
  3. Total Height of UAV: 0.89 meter (2 Ft 8 Inches)
  4. Total Wing Span: 5.2 meter (16 Ft 2 Inches)
  5. Total Wing Area: 3.09 Sq. Ft m (30 Sq. Ft)
  6. Maximum Take-off Weight: 100 Kilograms (220 lbs.)
  7. Dry Weight: 55 Kilograms (121 lbs.)
  8. Total Speed Range: 75 – 208 kmph (47 – 130 mph)
  9. Total Fuel Capacity: 30 Liters
  10. Power Plant of Tactical UAVS: 22 BHP Twin Cylinder Piston Engine
  11. Total Endurance: 6 – 8 Hours
  12. Total Communication Range (GPS/Autonomous): 160 – 200 Kilometers (100 – 120 Miles)
  13. Recovery: Parachute or Wheels
  14. Payload Capacity: 25 Kilograms (55 lbs.)
  15. Stabilization & Navigation: IFCS-7000 Integrated Flight Control System
  16. Typical Payloads: EO/IR Cameras, GSP-900 Surveillance Real-Time Camera Module, Experimental Mission Payload, different payloads can be mixed simultaneously
  17. Telemetry & Tracking: GCS-200 Ground Control Station, ID-TM6 Video, GPS and Data Telemetry Module and ATPS-2000 Antenna Tracking & Positioning System
