Integrated Dynamics Rover-XS Tactical Unmanned Aerial Vehicle System:

The Integrated Dynamics is a top-notch and well-reputed company based in PAKISTAN. The company is known to design, develop and manufacture state of the art, revolutionary and cutting-edge Unmanned Aerial Vehicle System (UAVS) to cater the requirements of both Civilian and Military Purposes. The name of the new product offered by the company is Integrated Dynamics Rover-XS Tactical Unmanned Aerial Vehicle System.

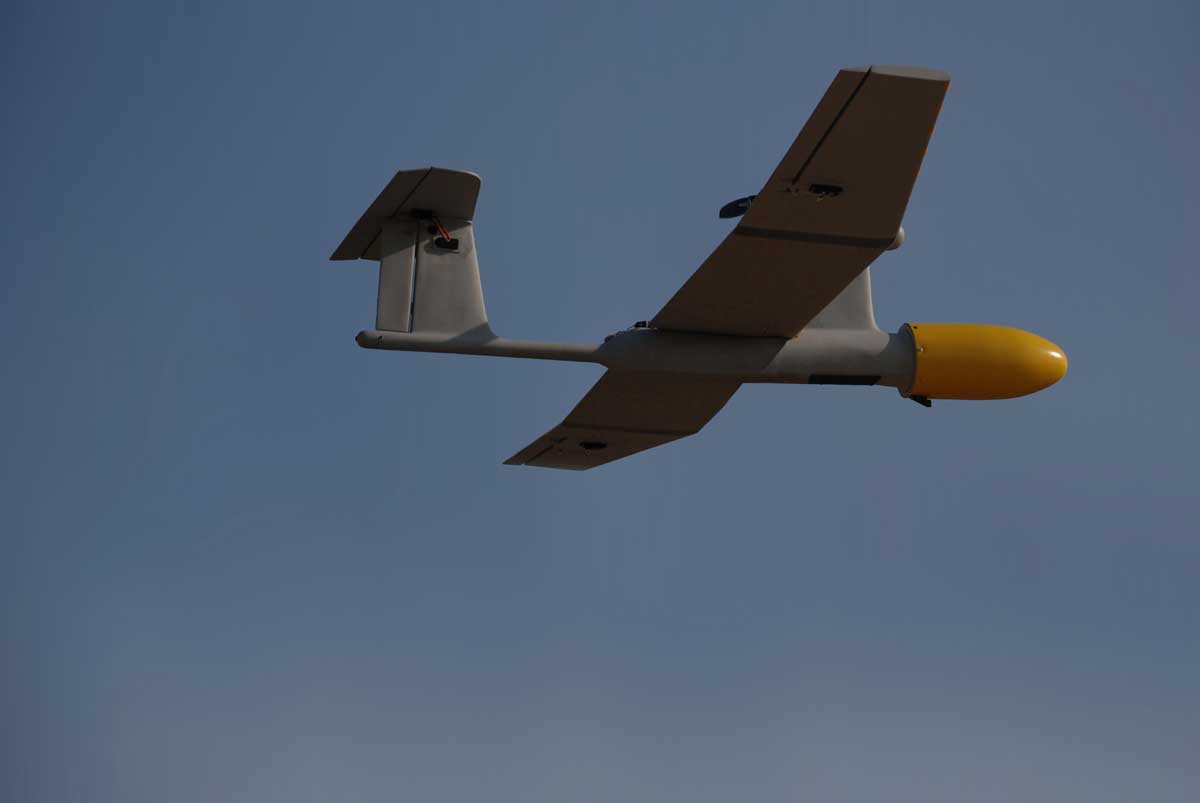

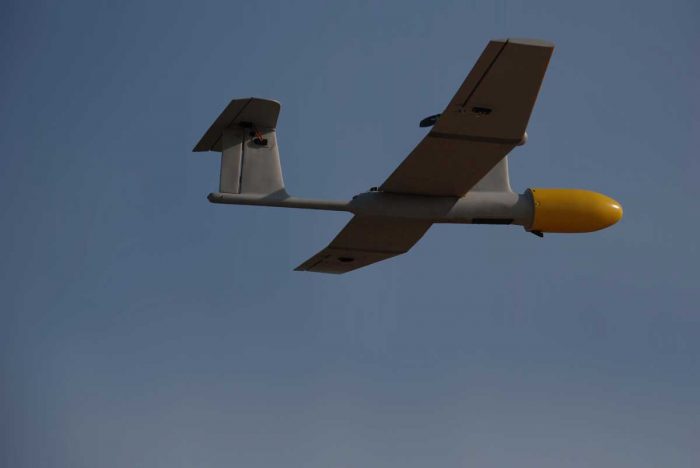

Integrated Dynamics Rover XS Unmanned Aerial Vehicle System
Integrated Dynamics Rover XS Unmanned Aerial Vehicle System

The Integrated Dynamics Rover-XS Tactical Unmanned Aerial Vehicle System, as the name clearly suggests, is basically the extended range payload testing version of its younger brother Rover MK-I UAVS. The Integrated Dynamics Rover-XS Unmanned Aerial Vehicle System (UAVS) is basically designed for ENG, Aerial Photography and Experimental payload testing services.

The Integrated Dynamics Rover-XS Tactical Unmanned Aerial Vehicle System is powered by the noiseless BLDC electric motor and the Rover-XS Tactical UAVS can flight at an altitude up to 3000 feet and it can stay in the air up to one hour continuously.

ALSO READ  PAKISTAN NAVY Ship PNS NASR Pays Farewell Visit To Mombasa Port In Kenya As Part Of Overseas Deployment To Africa

The Integrated Dynamics Rover-XS Tactical Unmanned Aerial Vehicle System has a total range up to 15 Kilometers and the Rover-XS Tactical UAVS is designed for Tactical monitoring, Surveillance and payload testing.

The Integrated Dynamics Rover-XS Tactical Unmanned Aerial Vehicle System comes with the compact auto-piloting system that eases up the process of calibration, programming and handling the Rover-XS Tactical UAVS.

One of the distinctive features of the Integrated Dynamics Rover-XS Tactical Unmanned Aerial Vehicle System (UAVS) is that it has a total weight just over to 5 Kilograms in total and it can easily be launched with the hand-launched.

As far as the recovery of the Integrated Dynamics Rover-XS Tactical Unmanned Aerial Vehicle System is concerned; the Rover-XS Tactical UAVS can easily be recovered with the help of Deep Stall and Belly Landing.

ALSO READ  Top indian defense analyst Admits That india Cannot Defeat PAKISTAN In A Potential Military Conflict

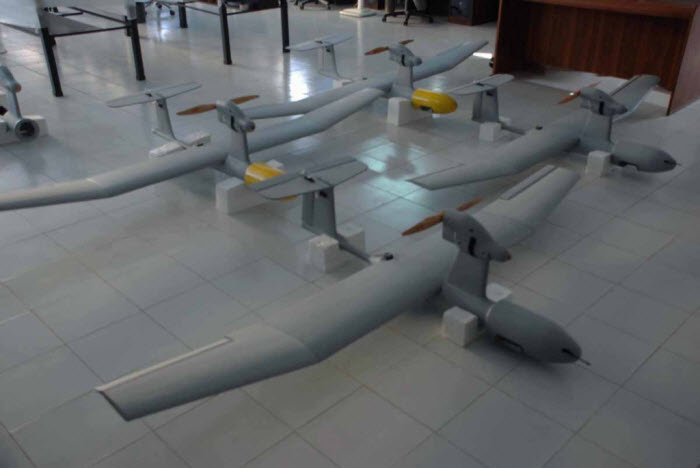

Integrated Dynamics Rover XS Unmanned Aerial Vehicle System in Pakistan

The Integrated Dynamics Rover-XS Tactical Unmanned Aerial Vehicle System  (UAVS) can carry up to 1 Kilograms of different combination of payload as per the mission requirement.

The complete system of Integrated Dynamics Rover-XS Tactical Unmanned Aerial Vehicle System (UAVS) consists of 4 numbers of Rover-XS Tactical UAVS, a Digital Spread Spectrum Telecommand Link, a Laptop PC Ground Control Station, cables, antennas and operation spares.

Additional Specifications of the Integrated Dynamics Rover-XS Tactical Unmanned Aerial Vehicle System:

  1. Role: Tactical Surveillance, Experimental Payload Testing, ENG and Aerial Photography
  2. Total Wing Area: 1.03 Sq. m (9.3 sq. ft.)
  3. Total Wingspan: 3.0 m (9.3 ft.)
  4. Total Height of Rover-XS Tactical UAVS: 0.3 m (1 ft.)
  5. Total Length of Rover-XS Tactical UAVS: 0.16 m (4.5 ft.)
  6. Dry Weight of Rover-XS Tactical UAVS: <3.5 Kilograms (7.7 lbs.)
  7. Maximum Take-off Weight: 6.5 Kilograms (14.3 lbs.)
  8. Propulsion: BLDC Electric Module + Gearbox
  9. Maximum Speed: 30-100 Kmph (20 – 60 mph)
  10. Launch System: Catapult Launcher, Bungee, Vehicle or Wheeled Dollies
  11. Recovery: Belly Landing/Deep Stall
  12. Total Endurance: 45-60 Minutes (Depending on Battery capacity and throttle management system)
  13. Range (Autonomous/GPS): 10-15 Kilometers (6-10 Miles)
  14. Stabilization: ID-AP 5000 C Digital Autopilot
  15. Payload Capacity: 1 KG (2.2 lbs.)
  16. Typical Payloads: Digital Still Cameras, Daylight/IR Camera module with Laptop PC Ground Control Station
  17. Tracking & Telemetry: Video, GPS and data telemetry modules
