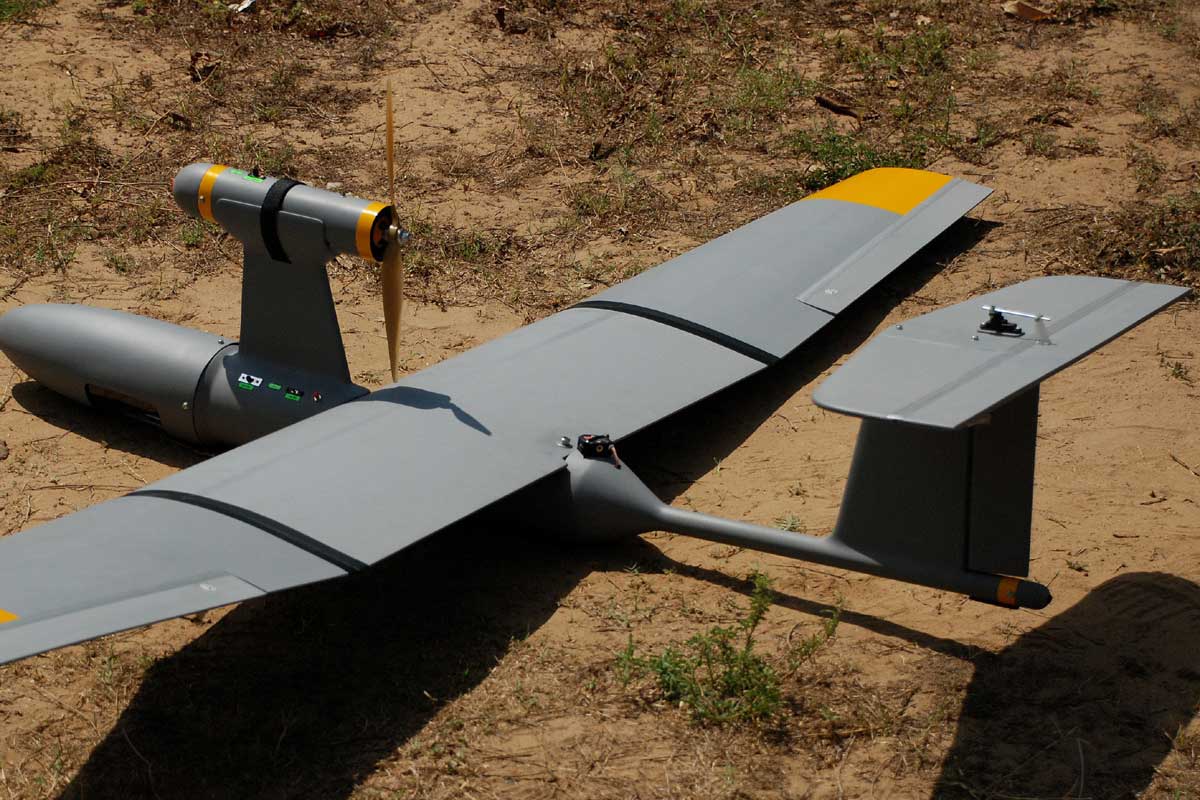

Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System:

The Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System is another premium quality UAVS designed and manufactured by PAKISTAN-based Integrated Dynamics Company. The Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System (UAVS) is basically a multi-mission capable Scientific Perimeter Monitoring Surveillance UAVS.

The Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System (UAVS) is designed for academic professional, researcher and to carry out advanced scientific tests in those scenarios where quick and reliable information is needed.

The Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System is packed with the noiseless electric propulsion BLDC module and it can operate at an altitude of over 3,000 feet with ease. The total speed of Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System ranges from 30-100 kmph and it has a total range up to 10-15 Kilometers in total and it can stay in the air for over an hour.

The Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System features the revolutionary compact auto-piloting system that provide much ease to operation in programming and calibration that makes it the robust Research and Perimeter Monitoring Surveillance UAVS in the market than its competitors.

The overall weight of the Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System is much less and it weighs only less than 0.5 KG in total. The Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System supplied with the Telemetry Downlink and PTZ Camera System for real-time surveillance purposes.

ALSO READ  Afghan Taliban Says Ready to Visit Brotherly Muslim Country PAKISTAN

The Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System is hand-launched UAVS and it can easily be recovered by using a belly landing or deep stall that makes it an ideal UAVS.

The ease of operation significantly improves the aircraft survivability and it also reduces the operator training time that makes the Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System a robust UAVS that can be available on a short notice.

The Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System can carry a wide range of Payloads up to 0.5 Kilograms, including Digital Still Camera Module, IR Cameras and Daylight Cameras. Different combination of payloads can be set as per the mission requirement.

The complete system of Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System consists of 4 Numbers of Unmanned Aerial Vehicle Systems (UAVs), Ground Control Station, Programming and real-time map moving software, A Digital Spread Spectrum (DSS), Telecommand link, cables, antennas and operational spares.

ALSO READ  PAKISTAN NAVY Conducts Live Firing Of Lethal Anti-Ship Missiles From Multiple Platforms In Arabian Sea

Specifications of the Integrated Dynamics Rover MK-I Unmanned Aerial Vehicle System:

  1. Role: Advanced Scientific Research and Perimeter Monitoring Surveillance
  2. Total Wing Area of Rover MK-I UAVS: 0.36 Sq. m (3.48 sq. ft)
  3. Total Wingspan of Rover MK-I UAVS: 1.5 meters (4.65 ft)
  4. Total Length of Rover MK-I UAVS: 0.9 meters
  5. Total Height of Rover MK-I UAVS: 0.2 meters (0.6 ft)
  6. Propulsion: Noiseless BLDC Electric Motor
  7. Speed Range 30 – 100 kmph (20 – 60 mph)
  8. Total Endurance: 45 – 60 minutes (Depending on Battery capacity and throttle management)
  9. Total Dry Weight: <2.5 KG (5.5 lbs)
  10. Take Off Weight: 4.5 KG (10 lbs)
  11. Range (GPS/Autonomous): 10 – 15 Km (6 – 10 mph)
  12. Launch System: Hand Launch
  13. Recovery System: Belly landing/Deep Stall
  14. Stabilization Method: ID-AP 2000 C Digital Autopilot System
  15. Payload Capacity: 0.5 Kilograms
  16. Typical Payloads: IR/Daylight Camera, Digital Still Camera Modules
  17. Tracking & Telemetry Options: GPS, Video and Data Telemetry module with Laptop PC Ground Station
