Integrated Dynamics Tornado High Speed Aerial Target And Turbojet Decoy Aircraft:
Integrated Dynamics is a well-known, credible and reputed company operated in PAKISTAN. The company engaged in the designing and manufacturing of state of the art Unmanned Aerial Vehicle (UAV’s) for both Military and Civilian Purposes. The name of the new product offered by the company is Integrated Dynamics Tornado High Speed Aerial Target and Turbojet Decoy Aircraft.
The Integrated Dynamics Tornado High Speed Aerial Target and Turbojet Decoy Aircraft is a new product offered by the company. The Integrated Dynamics Tornado High Speed Aerial Target and Turbojet Decoy Aircraft, as the name clearly suggests, is a cutting-edge high-speed, lightweight turbojet decoy aircraft.
The basic purpose of the Integrated Dynamics Tornado Aerial Target and Turbojet Decoy Aircraft is to provide real time mission and target coordination to actual fighter aircraft.
The Integrated Dynamics Tornado High Speed Aerial Target and Turbojet Decoy Aircraft is a high-speed, lightweight Turbojet Decoy System that features the autonomous navigation and pre-strike decoy systems.
The Integrated Dynamics Tornado High Speed Aerial Target and Turbojet Decoy Aircraft also feature the fire and forget capabilities in the most demanding complex hybrid warfare environment.

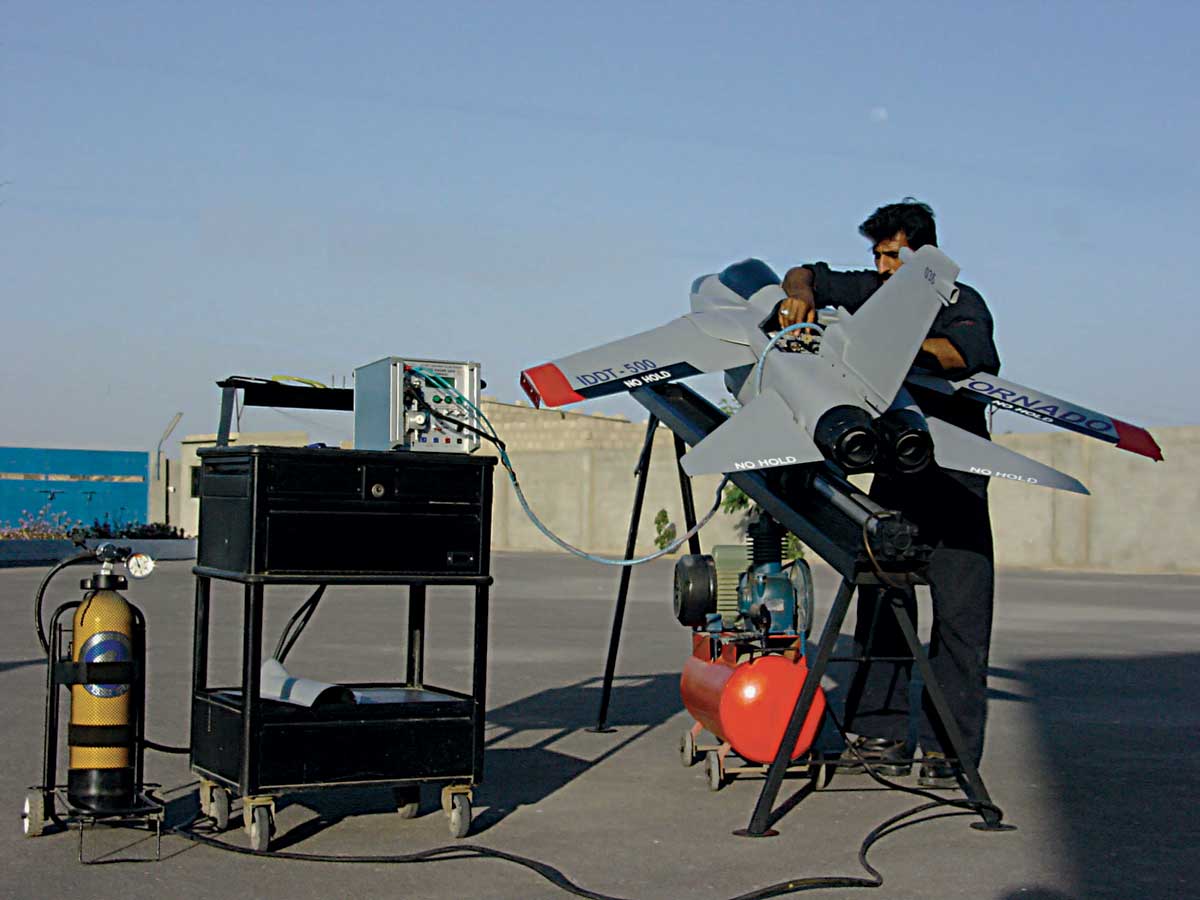

The complete system of Integrated Dynamics Tornado High Speed Aerial Target and Turbojet Decoy Aircraft consists of total 8 Decoy Turbojet aircrafts, portable ground station for pre-programming mission and a pneumatic catapult launcher system.
The ground control station of the Integrated Dynamics Tornado High Speed Aerial Target and Turbojet Decoy Aircraft provides multiple-vehicle flight capability with a range of more than 200 Kilometers.

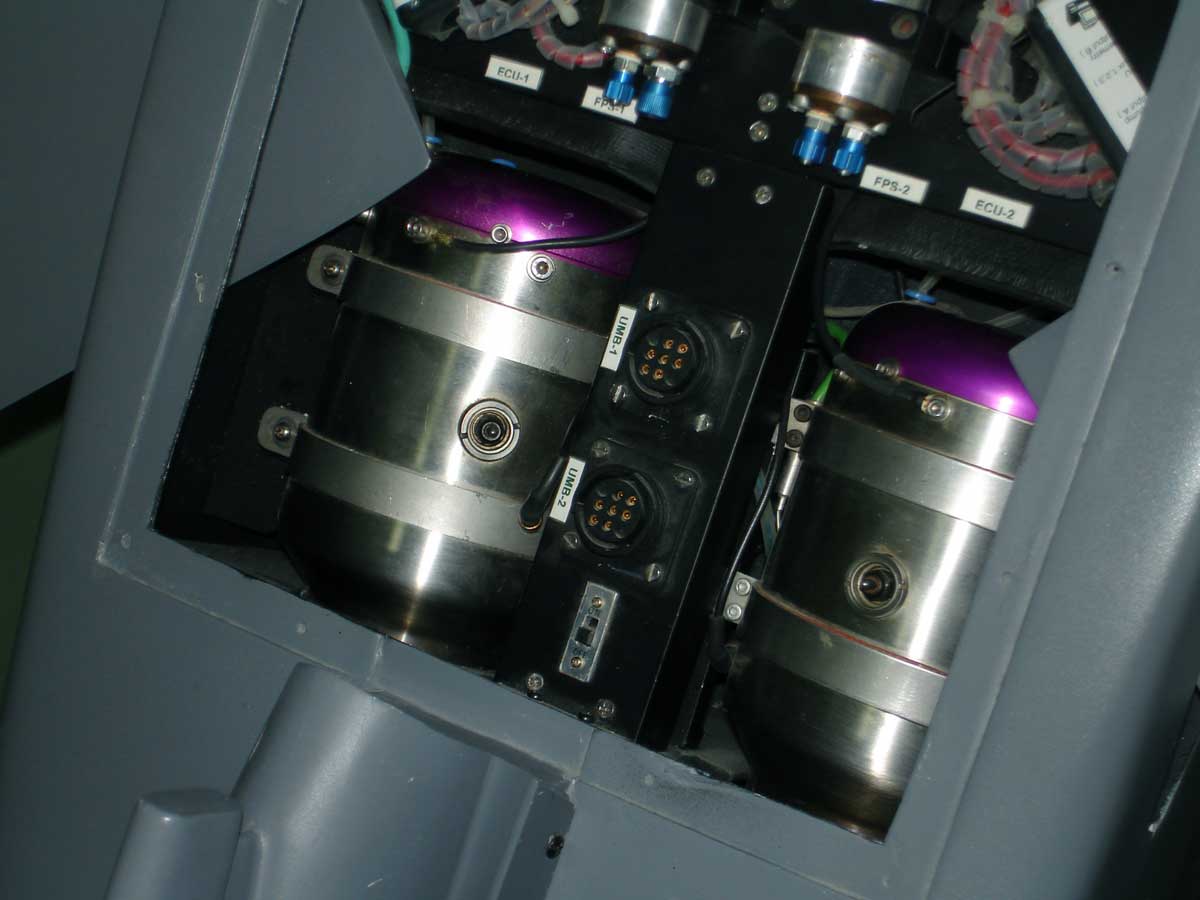

The Integrated Dynamics Tornado High Speed Aerial Target and Turbojet Decoy Aircraft is powered by the Two 20 Lbf thrust mini-turbojet engines and it has a maximum speed ranges from 130 – 464 Kmph.
As far as the total endurance of the Integrated Dynamics Tornado High Speed Aerial Target and Turbojet Decoy Aircraft is concerned; the Integrated Dynamics Tornado Aerial Target and Turbojet Decoy Aircraft can easily stay in the air up to 20 minutes in total.
The Integrated Dynamics Tornado High Speed Aerial Target and Turbojet Decoy Aircraft feature a total payload capacity up to 3 Kilograms in total. It means that this Turbojet Decoy Aircraft can easily carry multiple payloads as per the mission requirement. The Tornado Decoy Turbojet features the maximum take-off weight up to 25 Kilograms and it comes with the fuel capacity up to 10 liters in total.
Technical Specifications of the Integrated Dynamics Tornado High Speed Aerial Target and Turbojet Decoy Aircraft:
-
Role of Tornado Turbojet Decoy Aircraft: Aerial Target / Decoy Aircraft
-
Total Area of Wing: 0.63 sq. m (6 sq. ft.)
-
Total Length of Tornado Decoy Aircraft: 2.15 meters (6 ft. 6 inches)
-
Total Height of Tornado Decoy Aircraft: 0.89 meters (2 ft. 7 inches)
-
Total Wingspan of Tornado Aircraft: 2.36 meters (7 ft. 3 inches)
-
Power Plant: Two 20 lbs. Thrust Mini-Turbojets
-
Launch Speed: 38 m/sec
-
Speed Range of Tornado Decoy Aircraft: 82 – 290 mph (130 – 464 Kmph)
-
Total Endurance: 20 Minutes
-
Total Autonomous Range: 200 Kilometers (125 Miles)
-
Recovery System: Fire and Forget
-
Total Fuel Capacity: 10 Liters
-
Total Take-off Weight of Tornado Decoy Aircraft: 25 Kilograms (53 lbs.)
-
Total Dry Weight of Decoy Aircraft: 15 Kilograms (33 lbs.)
-
Total Payload Capacity: 6.6 lbs. (3 Kilograms)
-
Navigation & Stabilization Method: IFCS-6000 integrated Flight Control System
-
Typical Payloads: Combinations radar and Flares enhancement devices (As per the mission requirement)
