Integrated Dynamics Nishan TJ-1000 High Speed Aerial Target High Speed Unmanned Aerial Vehicle System:

Integrated Dynamics is a reputed company of PAKISTAN engaged in the designing, manufacturing and exporting of state of the art Military and Civilian Unmanned Aerial Vehicle Systems (UAVS). The name of the new product offered by the company named as Integrated Dynamics Nishan TJ-1000 Aerial Target Unmanned Aerial Vehicle System.

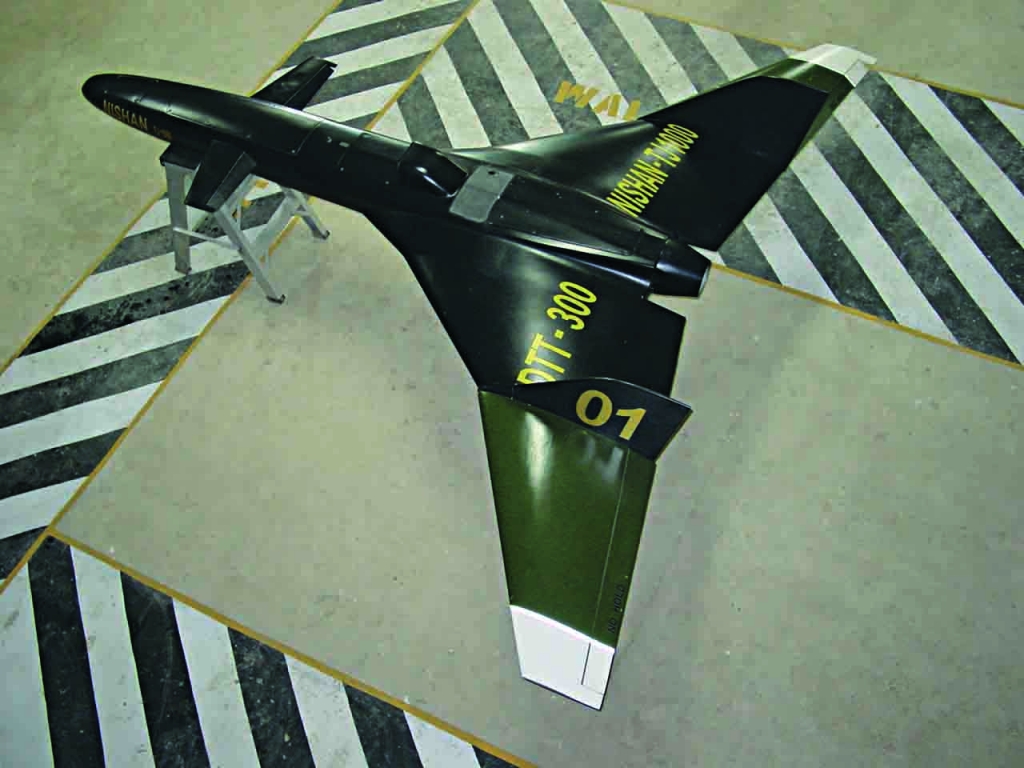

Integrated Dynamics Nishan TJ-1000 Aerial Target Unmanned Aerial Vehicle System
Integrated Dynamics Nishan TJ-1000 Aerial Target Unmanned Aerial Vehicle System

The Integrated Dynamics Nishan TJ-1000 Aerial Target Unmanned Aerial Vehicle System, as the name clearly suggests, is a state of the art High-speed Aerial Target/Decoy Unmanned Aerial Vehicle System (HS-UAVS) designed for next generation simulation systems and air defense training.

The Integrated Dynamics Nishan TJ-1000 Aerial Target Unmanned Aerial Vehicle System is powered by the 40 Kilograms Static thrust Full-Flow Turbojet Engine and its exceptional and unmatched performance and thrust to weight ratio makes the Nishan TJ-1000 an ideal High-speed Unmanned Aerial Vehicle System (HS-UAVS).

The modular feature of the Integrated Dynamics Nishan TJ-1000 Aerial Target Unmanned Aerial Vehicle System provides ease in the interchangeability of payloads, operational electronics and interface of the HS-UAVS.

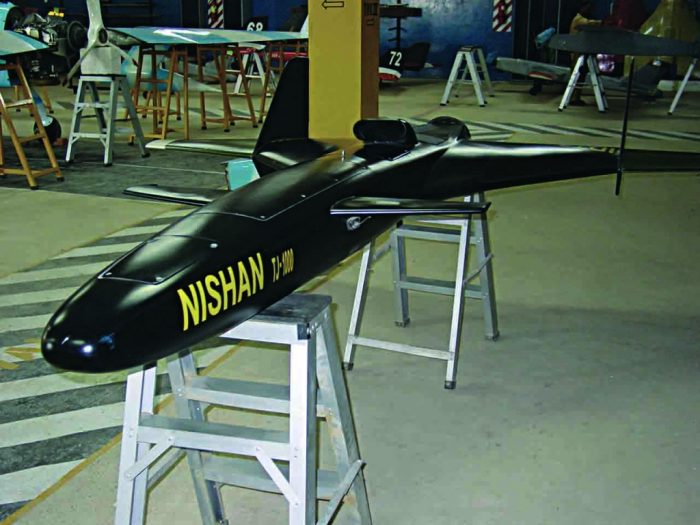

Integrated Dynamics Nishan TJ-1000 Aerial Target High Speed Unmanned Aerial Vehicle System in PAKISTAN
Integrated Dynamics Nishan TJ-1000 Aerial Target High Speed Unmanned Aerial Vehicle System in PAKISTAN
ALSO READ  CNS Admiral Abbasi Reviewed Operational Readiness And PAKISTAN NAVY Installations At Gwadar And Turbat

The Integrated Dynamics Nishan TJ-1000 Aerial Target Unmanned Aerial Vehicle System has a total speed up to 300-350 kmph and it has a total range up to 35 kilometers in total. As far as the total endurance of the Nishan TJ-1000 is concerned; the Integrated Dynamics Nishan TJ-1000 Aerial Target Unmanned Aerial Vehicle System has a total endurance up to 35 minutes in total.

The Integrated Dynamics Nishan TJ-1000 Aerial Target Unmanned Aerial Vehicle System also features the Digital Autopilot system with Height and Heading Lock. The Nishan TJ-1000 has a total payload capacity up to massive 8 kilograms in total and it can take the combination of variety of Camera Modules, Radars and Flares as per the mission requirement.

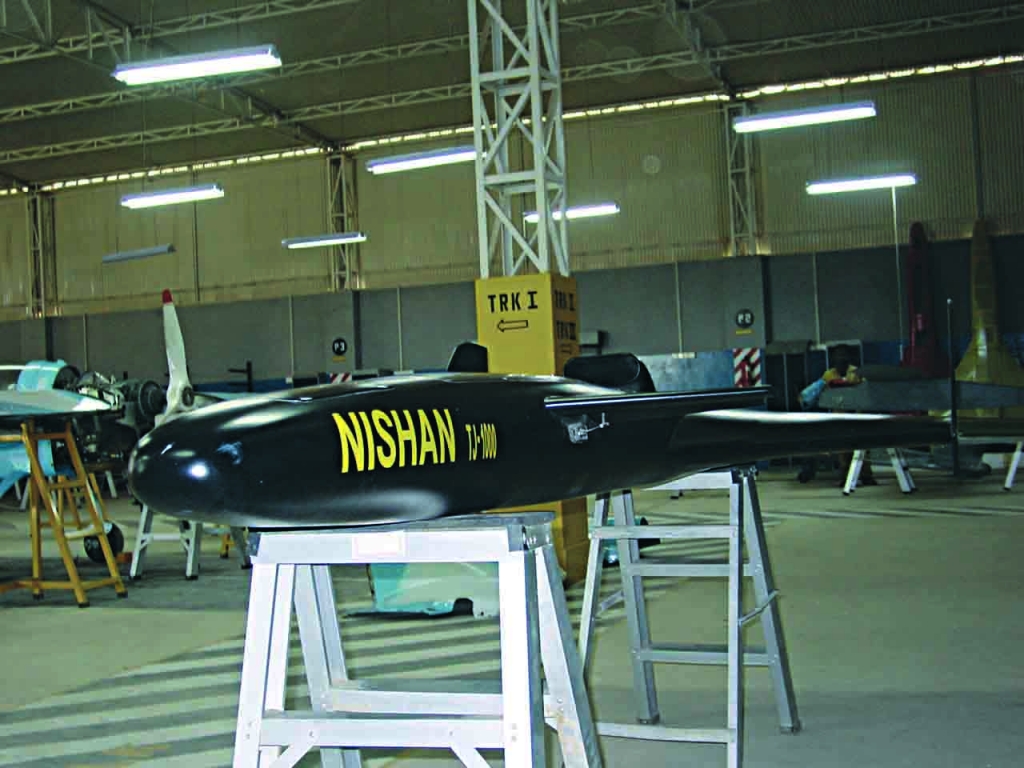

Integrated Dynamics Nishan TJ-1000 HS-UAVS PAKDEFENSE
Integrated Dynamics Nishan TJ-1000 HS-UAVS
ALSO READ  PAKISTAN's Defense Exports Crossed Whooping $212 Million Mark in 2018-2019

The complete system of Integrated Dynamics Nishan TJ-1000 Aerial Target Unmanned Aerial Vehicle System consists of 6 numbers of Nishan TJ-1000 HS-UAVS, the ATPS-1200 Antenna Tracking & Positioning System, portable Ground Control Station GCS-1200, GSE-1200 Ground Support Equipment Subsystem, real time moving map display and programming software and spares.

Technical Specifications of the Integrated Dynamics Nishan TJ-1000 Aerial Target Unmanned Aerial Vehicle System:

  1. Role of Nishan TJ-1000 Aerial Target Turbojet HS-UAVS: Aerial Target High-Speed Unmanned Aerial Vehicle System
  2. Total Area of Wings: 2.42 sq. m (26 sq. ft.)
  3. Total Height of Nishan TJ-1000 Turbojet HS-UAVS: 0.89 meter (2 ft 7 inches)
  4. Total Length of Nishan TJ-1000 Turbojet HS-UAVS: 3.06 meters (9 ft 8 inches)
  5. Total Wingspan: 2.87 meters (9 ft. 2 inches)
  6. Power Plant: 40 Kilograms (90 Pounds) Static Thrust Full-Flow Turbojet
  7. Total Speed Range: 300 – 350 Kmph (190 – 220 mph)
  8. Range (Autonomous/GPS): 35 Kilometers (21.9 Miles)
  9. Total Endurance Time: 35 Minutes
  10. Ceiling: 6500 ft (~2000 meters)
  11. Total Fuel Capacity: 25 Liters
  12. Total Dry Weight: 30 Kilograms (66 lbs.)
  13. Maximum Take Off Weight: 60 Kilograms (132 lbs.)
  14. Launch & Recovery Options of Nishan TJ-1000 Turbojet HD-UAVS: Parachute or Skid Landing System
  15. Total Payload Capacity: 8 Kilograms (17 lbs.)
  16. Navigation & Stabilization System of Nishan TJ-1000 HS-UAVS: AP-5000 Digital Autopilot with Height and Heading Lock System
  17. Telemetry and Tracking Systems: ATPS-1200 Antenna Tracking & Positioning System, ID-TM6 GPS and Data Telemetry Module and GCS-1200 Ground Control Station
  18. Typical Payloads of Nishan TJ-1000 HS-UAVS: Passive/Active Radar Enhancements, Acoustic and Doppler Radar MDI, Hot Nose Cone Infrared (IR) Source, Surveillance Real-Time Camera Module, Up to 16 Infra-red Flares, Up to 24 Smoke Flares (Combinations of different type of flares and payloads can be carried out as per the demanding mission requirement and scenarios)
