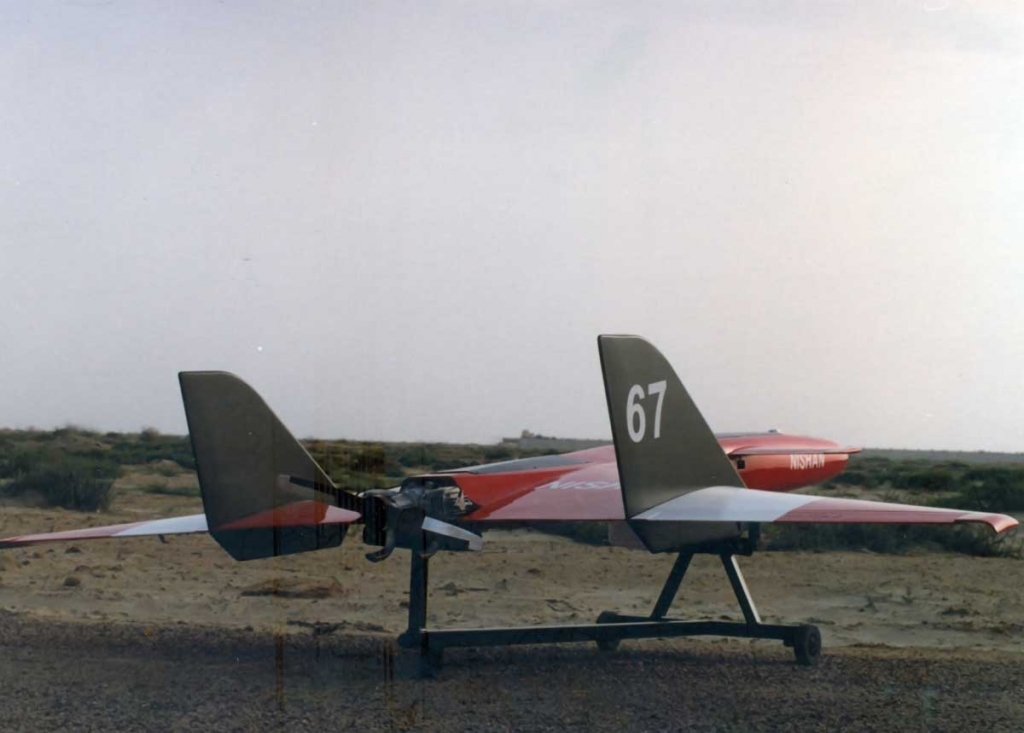

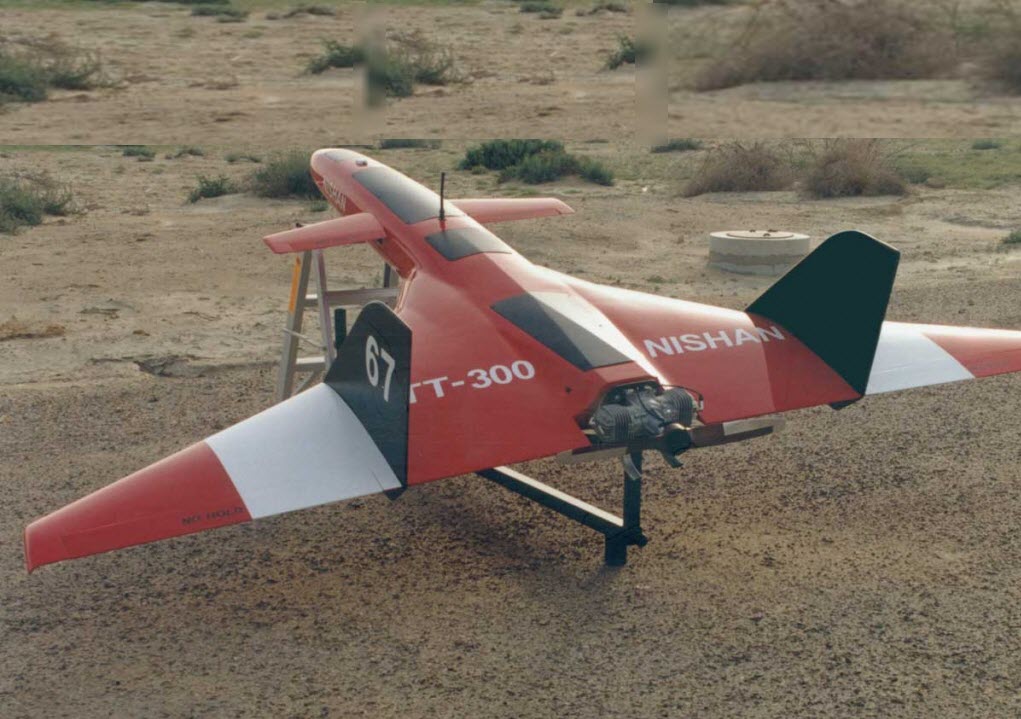

Integrated Dynamics Nishan MK-II High Speed Aerial Target High Speed Unmanned Aerial Vehicle System:

Integrated is a top of the line and credible PAKISTAN based company engaged in the designing  and manufacturing of Cutting-Edge Unmanned Aerial Vehicle System (UAVS) for both military purposes and civilian purposes. The name of the new product offered by the company is Integrated Dynamics Nishan MK-II Aerial Target High Speed Unmanned Aerial Vehicle System.

The Integrated Dynamics Nishan MK-II Aerial Target High Speed Unmanned Aerial Vehicle System, as the name clearly suggests, is a state of the art Aerial Target High Speed Unmanned Aerial Vehicle System (HS-UAVS) designed for next generation simulation Systems and next generation Air Defense training.

The Integrated Dynamics Nishan MK-II Aerial Target High Speed Unmanned Aerial Vehicle System is powered by the 25 British Horse Power (BHP) Integrated Circuit (IC) Piston Engine, which has proven reliability in many hours of field usage.

As far as the Operational Electronics of the Nishan MK-II HS-UAVS is concerned; the Integrated Dynamics Nishan MK-II Aerial Target High Speed Unmanned Aerial Vehicle System supports different electronic operational payloads and subsystems, include Sea Skimming Modules, GPS/Video Navigation System, Height Lock, Miss Distance Indicator (MDI) Systems and so on.

The Integrated Dynamics Nishan MK-II Aerial Target High Speed Unmanned Aerial Vehicle System features a high-degree of modularity that allows the easy interchangeability of airframes, payloads, parts and operational electronics.

The Integrated Dynamics Nishan MK-II Aerial Target High Speed Unmanned Aerial Vehicle System has a total speed range up to 250-300 kmph and it has a maximum range up to 20-30 Kilometers in total.

The Nishan MK-II Aerial Target HS-UAVS has total endurance time up to 60 minutes or 1 Hour in total. The Integrated Dynamics Nishan MK-II Aerial Target High Speed Unmanned Aerial Vehicle System can easily handle a maximum combination of payloads up to 5 kilograms in total.

The Integrated Dynamics Nishan MK-II Aerial Target High Speed Unmanned Aerial Vehicle System also features the revolutionary infrared and smoke/chaff flares as per the mission requirement.

The complete system of Integrated Dynamics Nishan MK-II Aerial Target High Speed Unmanned Aerial Vehicle System consists of 10 Nishan MK-II HS-UAVS, ATPS-1200 Antenna Tracking & Positioning System, GSE-1200 Ground Support Equipment Subsystem, GCS-1200 Ground Control Station, real time moving map mission display and programming software and spares.

Technical Specifications of the Integrated Dynamics Nishan MK-II Aerial Target High Speed Unmanned Aerial Vehicle System:

1. Role of Nishan MK-II HS-UAVS: Aerial Target High-Speed Unmanned Aerial Vehicle System

2. Flight Modes: Remote Pilot Vehicle (RPV)/Unmanned Aerial Vehicle (UAV)

3. Total Wing Area: 2.42 Sq. m (26 sq. ft.)

4. Total Length of Nishan MK-II HS-UAVS: 3.06 m (9 ft. 8 Inches)

5. Total Height of Nishan MK-II HS-UAVS: 0.89 m (2 ft. 7 Inches)

6. Power Plant: 25 British Horse Power (BHP) Integrated Circuit (IC) Piston Engine

7. Total Speed Range of Nishan MK-II HS-UAVS: 250 – 300 Kmph (150 – 187 mph)

8. Total Operational Range of Nishan MK-II HS-UAVS: 20-30 Kilometers (12 – 18 Kmph)

9. Total Endurance of Nishan MK-II HS-UAVS: 60 Minutes or One Hour

10. Total Fuel Capacity of Nishan MK-II HS-UAVS: 20 Liters

11. Ceiling of Nishan MK-II: 10000 ft. (3000 meters)

12. Maximum Payload Capacity: 5 Kilograms (11 lbs.)

13. Total Dry Weight of Nishan MK-II HS-UAVS: 16 Kilograms (35 lbs.)

14. Maximum Take-Off Weight of Nishan MK-II HS-UAVS: 35 Kilograms (77 lbs.)

15. Launch and Recovery Method of Nishan MK-II: Skid Landing or Parachute System

16. Telemetry and Tracking Systems of Nishan MK-II HS-UAVS: ATPS-1200 Antenna Tracking & Positioning System, ID-TM6 GPS, GCS-1200 Ground Control Station and Data Telemetry Module

17. Typical Payloads: Radar Altimeter Module, Acoustic and Doppler Radar, Miss Direct Indication, Up to 8 Infra-red Flares, Up to 8 Smoke Flares, etc. (Different combination of Payloads and flared may be mixed as per the demanding mission requirement
