Integrated Dynamics Vision Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS):

The Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) is yet another state of the art Surveillance Unmanned Aerial Vehicle System designed by the PAKISTAN based Integrated Dynamics company.

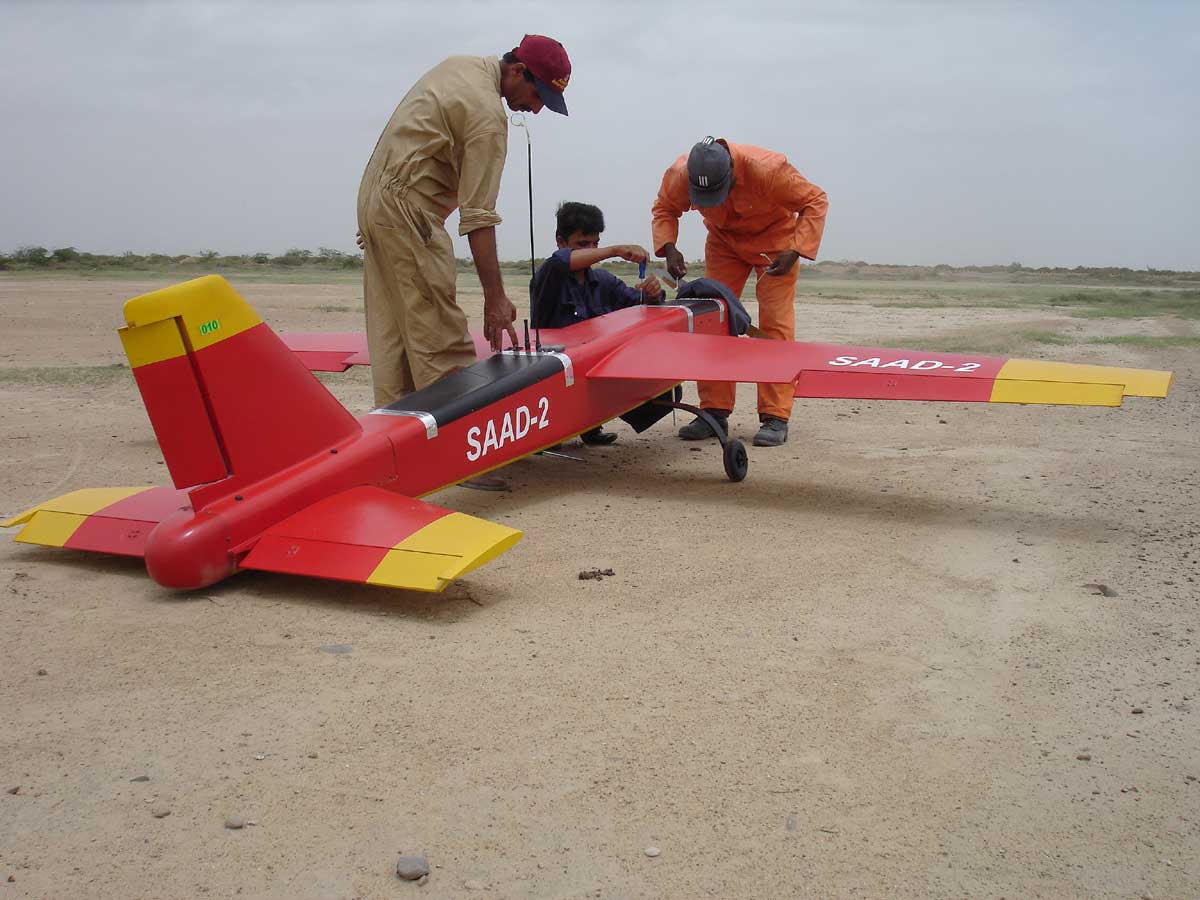

Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) in PAKISTAN
Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) in PAKISTAN

The Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) is a Military Grade field operation Tactical Unmanned Aerial Vehicle System designed for tactical surveillance of an area in a complex hybrid warfare environment.

The Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) also features the latest GPS Navigation, Microelectronic Flight Control System, Field Proven airframes and aerospace quality composite construction.

The Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) has undergone several years of field testing into a reliable tactical field UAV and it features the Military Grade C4I System (Command, Control, Communications, Computers, & Intelligence) to unbelievable affordable level.

The specially designed aerodynamics of the Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) allows the user for extended loiter operation over movable or immovable targets.
The Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) also features the revolutionary Pre-programmed Smart Flight control system that significantly improves the probability of aircraft survivability and it also reduces the operator workload.

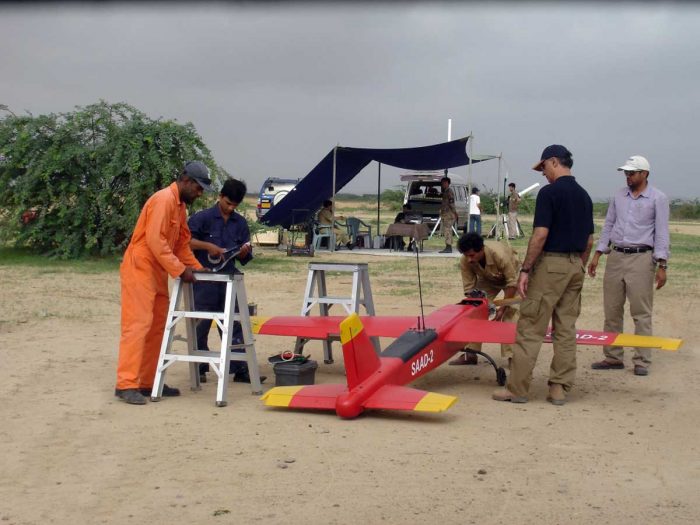

PAKISTAN PAKDEFENSE Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS)
PAKISTAN Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS)

The Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) is a ready to use UAVS and it can be ready for operation in a short notice.

The Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) has a total range of 80 Kilometers, means it can photograph multiple targets and patrol in the area with precision.

The composite structure and basic cantilever structure platform of the Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) provides a stable aerodynamic and it also enhances the configuration for the most demanding tasks.

ALSO READ  PAKISTAN NAVY's Newest Stealth Warship PNS TAIMUR Participates In MALPAK-IV Bilateral NAVAL Drills With Royal Malaysian Navy During Official Visit To Malaysia

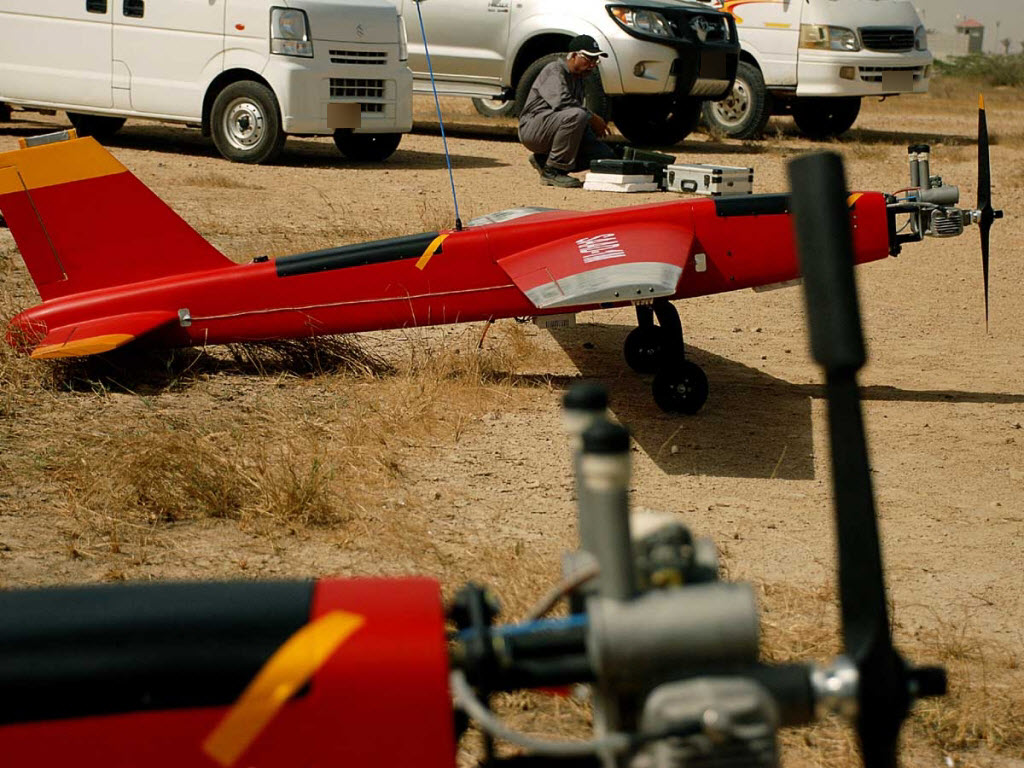

Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS)
Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS)

The Integrated Dynamics Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) features dual recovery options as the parachute recovery system or conventional wheel landing systems significantly reduces the probability of aircraft survivability and it also help to reduce the operator training time considerably.

The complete system of Integrated Hornet Tactical Surveillance Unmanned Aerial Vehicle System (UAVS) consists of 4 numbers of Unmanned Aerial Vehicle Systems (UAVs), the ATPS-1200 Antenna Tracking & Positioning System, Portable GCS-1200 Ground Control Station (GCS), GSE-1200 Ground Support Subsystem, Special PC software for moving map and programming and additional spares.

ALSO READ  Chief Of The Joint Staff of Argentina Armed Forces Held One On One Important Meeting With CNS Admiral Muhammad Amjad Khan Niazi At NAVAL HQ Islamabad

Technical Specifications of the Integrated Dynamics Hornet  Tactical Surveillance Unmanned Aerial Vehicle System (UAVS):

  1. Role: Tactical Surveillance UAV
  2. Total Length of UAVS: 2.95 meter (9 Ft 8 Inches)
  3. Total Height of UAVS: 0.89 Meter (2 Ft 7 Inches)
  4. Total Area of Wing: 3.09 Sq. meter (30 Sq. ft)
  5. Wingspan: 3.87 meter (12 Ft 2 Inches)
  6. Empty Weight: 25 Kilograms (55 lbs)
  7. Maximum Take-off Weight: 50 Kilograms (110 lbs)
  8. Power Plant: 22 British Horse Power Twin-Cylinder Piston Engines
  9. Total Capacity of Fuel: 15 Liters
  10. Maximum Speed Range: 132 – 240 kmph (70 – 150 mph)
  11. Autonomous/GPS Range: 80 – 100 Kilometer (50 – 60 Miles)
  12. Total Endurance: 4 – 6 Hours
  13. Recovery: Dual System; Wheels and Parachute
  14. Stabilization: IFCS-600 Integrated Flight Control System
  15. Total Payload Capacity: 10 Kilograms (22 lbs)
  16. Typical Payloads: EO/IR Modules, GSP-900 Surveillance Real-Time Camera Modules
  17. Tracking & Telemetry: ATPS-2000 Antenna Tracking System, GCS-2000 Ground Control Station, ID-TM6 GPS and Data Telemetry Module
