Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS):

The Integrated Dynamics is a well-reputed and top credited Private Company of PAKISTAN that deals with the design, manufactures and exports various types Drone for Civilians and Military purposes. The name of the new drone offered by the company is named as Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS).

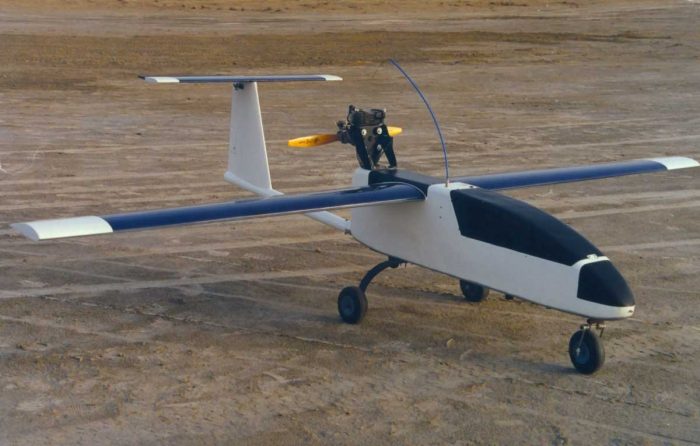

Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS) in PAKISTAN
Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS) in PAKISTAN

The Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS), as the name clearly indicates, is a field operation capable Unmanned Aerial Vehicle System designed for the surveillance, extended surveillance and patrol missions.

The Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS) can be easily controlled remotely and it can function over the horizon in autonomous modes for surveillance and patrolling purposes.

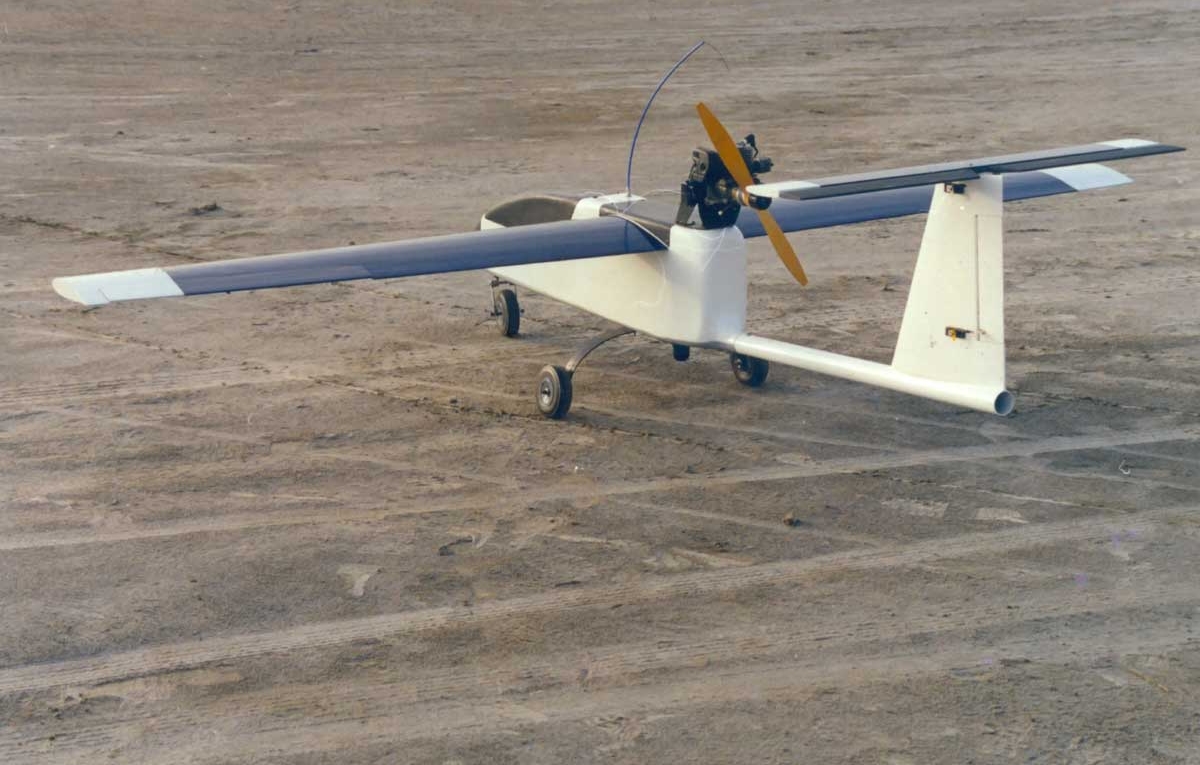

Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS)
Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS)
ALSO READ  200 Million Proud PAKISTANI Nation Welcomed TURKISH President Recep Tayyip Erdoğan To Brotherly Country PAKISTAN

The Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS) is considered as an exceptional system trainer for BVR Unmanned Aerial Vehicle for operations and surveillance up to massive 50 Kilometer range.

In Hybrid Warfare Environments and Field Operations, the Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS) allows the user to easily pre-programmed the UAV’s advanced navigation and flight control system to autonomously photograph multiple designated targets simultaneously or patrol a pre-specified area.

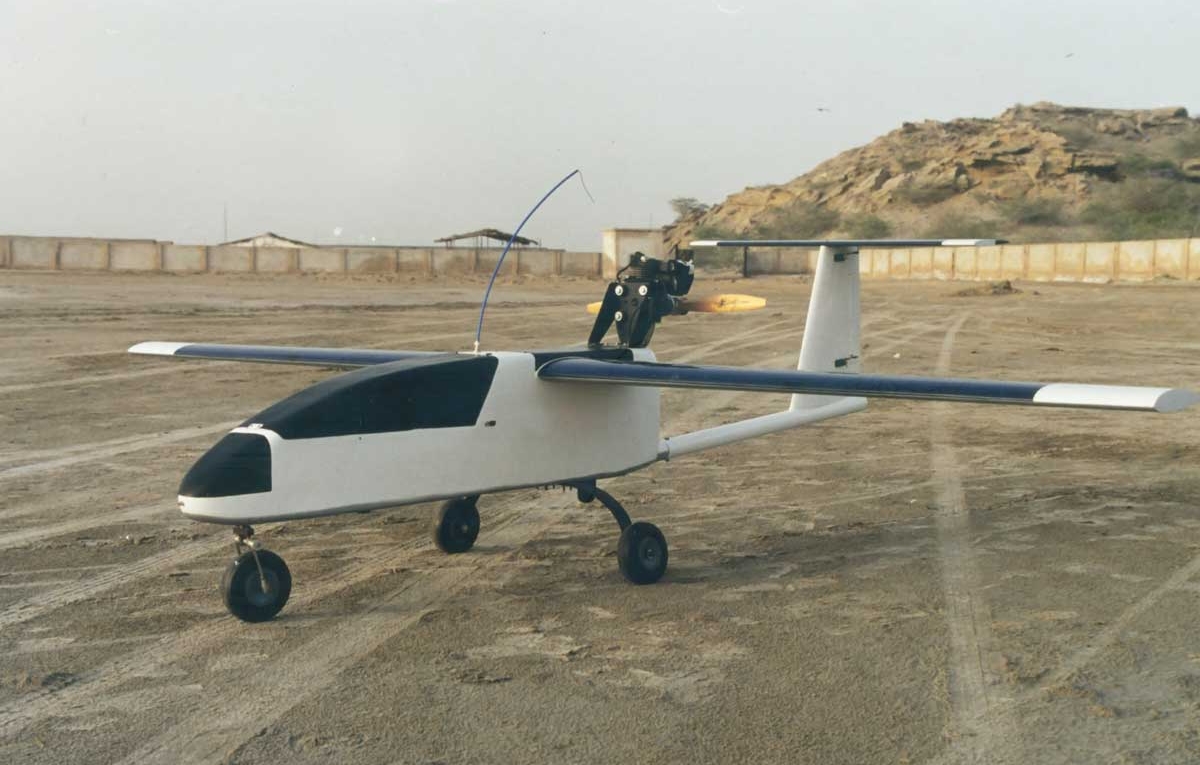

PAKISTAN Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS) PAKDEFENSE
PAKISTAN Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS) PAKDEFENSE
ALSO READ  COAS General Bajwa Lauds The Professional Expertise And International Standards Of PAC Kamra

The Advance Navigation and Flight Control System also save the operator time to manually control and operate the drone in demanding scenarios. The Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS) also have a multiple fuselage to accommodate the complex and sophisticated payloads.

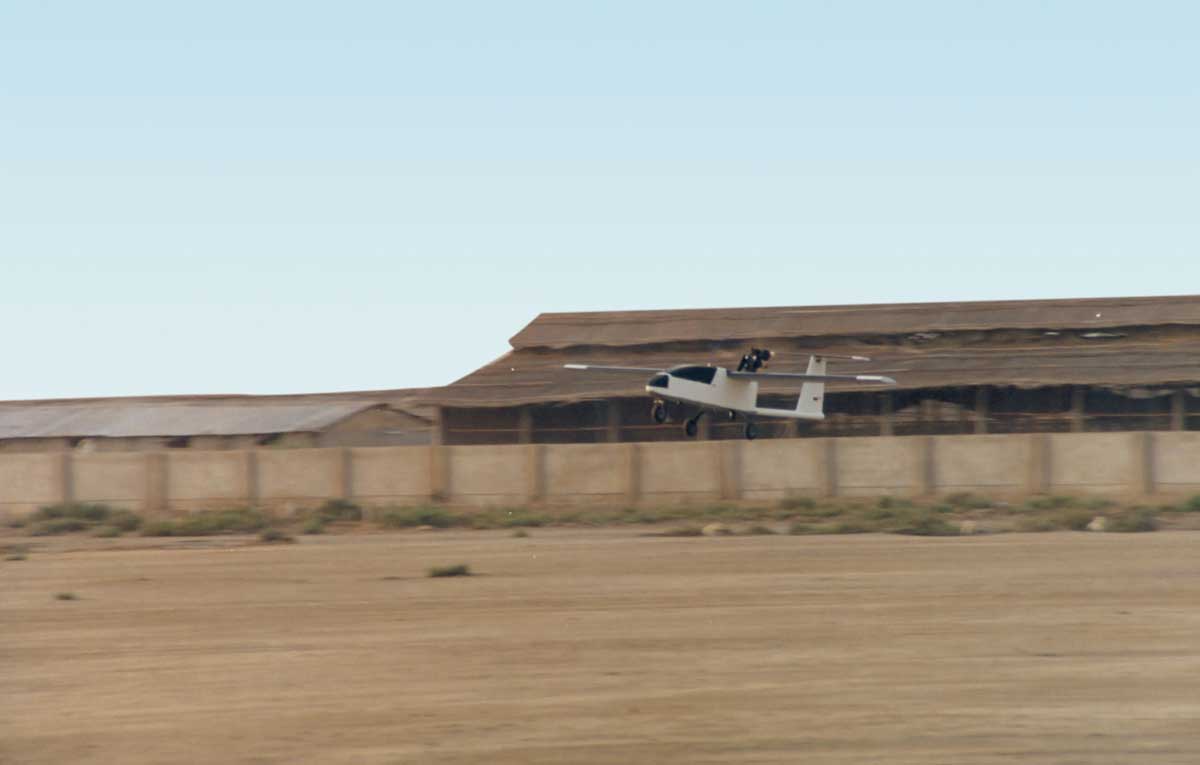

PAKDEFENSE Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS)
PAKDEFENSE Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS)

The complete system of Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS) consists of 4 numbers of Unmanned Aerial Vehicles (UAVS), Portable GCS-1200 (Ground Control Station), Moving Map and programming display Software, Antenna Tracking & Positioning System (ATPS-1200), GSE-1200 Ground Support Equipment Subsystem and spares.

Technical Specifications of Integrated Dynamics Vision MK-I Mini Surveillance Unmanned Aerial Vehicle System (UAVS):

  1. Role: Surveillance Unmanned Aerial Vehicle
  2. Height: 0.65 meter (2 Ft 2 Inches)
  3. Length: 2.25 Meter (7 Ft)
  4. Area of Wing: 1.44 Sq.m (13.33 Sq.ft)
  5. Wingspan: 3.22 m (10 ft 2 Inches)
  6. Empty Weight: 19 Kilograms (40 Lbs)
  7. Maximum Take-off Weight: 35 kilograms (77 Lbs)
  8. Power Plant of UAVS: 6.5 BHP Single-Cylinder Engine
  9. Fuel Capacity: 10 Liters
  10. Speed Range: 75 – 207 Kmph (47 – 130 mph)
  11. Total Endurance: 4-6 Hours
  12. Range (Autonomous/GPS): 50 Kilometers (31 Miles)
  13. Navigation & Stabilization: ID AP4 Digital Autopilot with Height-Lock and Heading
  14. Recovery: Parachute or Wheels
  15. Total Capacity of Payload: 10 Kilograms (22 Lbs)
  16. Typical Payloads: GSP-100 Surveillance Real Time Camera Module
  17. Tracking & telemetry: ATPS-1200 Antenna Tracking System, ID-TM6 GPS and Data Telemetry Modules GCS-1200 Ground Control Station
